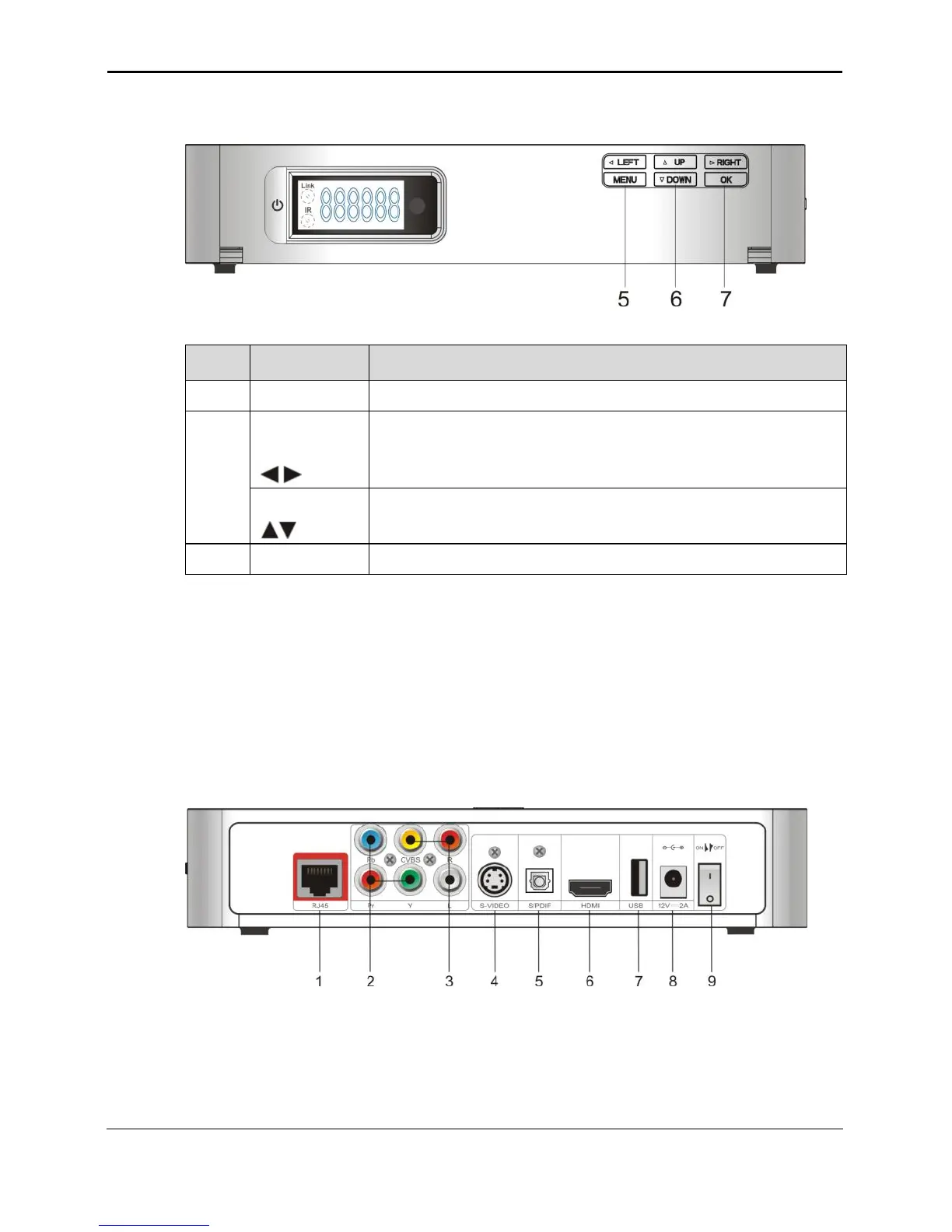

Huawei EC2108E - Rear Panel; Figure 3-2 Uncovered Front Panel of the EC2108 E STB; Figure 3-3 Rear Panel of the EC2108 E STB

3 Appearance
EC2108E STB
User Guide
3-2
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue 01 (2010-01-05)
Figure 3-2 Uncovered front panel of the EC2108E STB
No.
Name
Description
5
MENU
You can press the key to access the main menu.
6
LEFT/RIGH
T
You can press the keys to adjust volume, or move the cursor
leftward or rightward on the EPG.
UP/DOWN
You can press the keys to switch between channels, or move
the cursor upward or downward on the EPG.
7
OK
You can press the key to confirm an operation.
3.2 Rear Panel
Figure 3-3 shows the rear panel of the EC2108E STB. Figure 3-4 shows the right-side
panel of the EC2108E STB.
Figure 3-3 Rear panel of the EC2108E STB
