HUAWEI
15
Spare battery case
Spare battery should be placed in it.
Tapping screw installation hole
You are recommended to fix the tapping screw to place 4) in Figure 3-2 in case
children were hurt by touching the battery.
Installation interface to indoor antenna
For the FWT type that can be installed with indoor antenna, you need this
interface.
FWT Side View and Description
1) Main unit spiral cord jack 2) Handset spiral cord jack
3) Spiral cord 4) Handset
5) Power jack 6) FWT switch
7) DB9 serial port

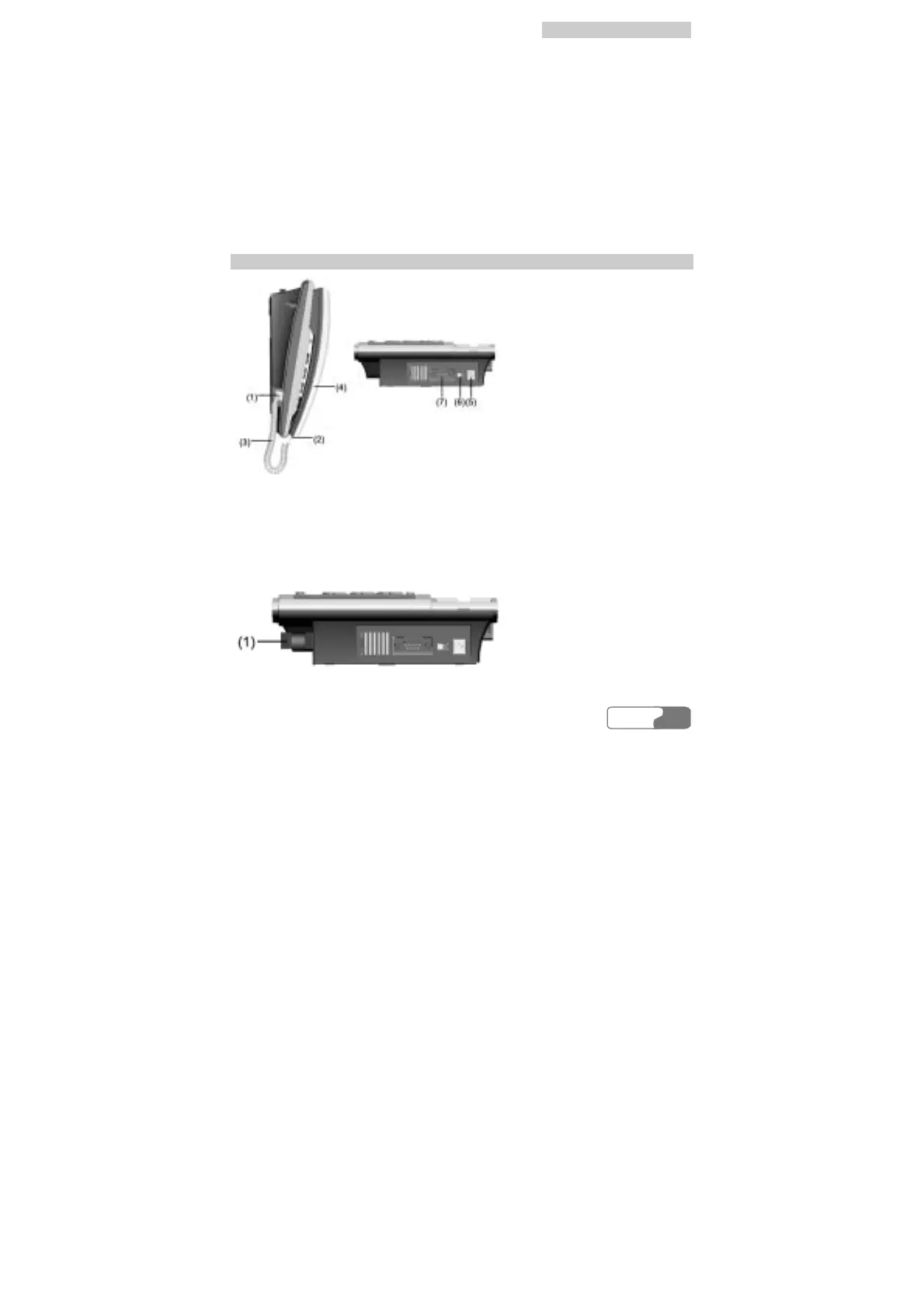

Figure 3-4 FWT side view (1)
1) Installation interface to indoor antenna
To Next Page
