Huawei FusionModule500 Quick Guide

2
Copyright © Huawei Technologies Co., Ltd. 2021.
All rights reserved.
Item Specifications
Cabinet dimensions (H x
W x D)
Converged Cabinet: 2000 mm x 600 mm x 1100 mm
Installation scenario
Single
-cabinet scenario
Installation space
The cabinet provides 42 U available space. The mounting bars are
adjustable forward or backward, and space is reserved at the rear of
the cabinet for installing PDU2000s horizontally and vertically.
Power distribution
6 kVA UPS
PDU2000: can be installed horizontally or vertically.
IEC and GB
models are optional for horizontal installation.
Lithium battery: 100 Ah/48 V DC
Operating temperature
Indoor:
0
°
C to +40
°
C
Operating humidity
5%
–95% RH
IP rating
IP20
Installation mode
Installed on a concrete floor or an
ESD floor
Altitude
≤ 1000 m (
derated
when the altitude ranges from 1000 m to 4000 m)
1
Overview
No. Component
Onsite
Installation
(1) ECC800
Not
required
(2) Door status sensor
Not
required
(3)
Power distribution
subrack
Not
required
(4) UPS
Not
required
(5) Lithium battery Required
(6) Water sensor Required
(7) Smoke detector
Not
required
(8)
Temperature and
humidity (T/H)
sensor
Required
(9) PDU2000 Required

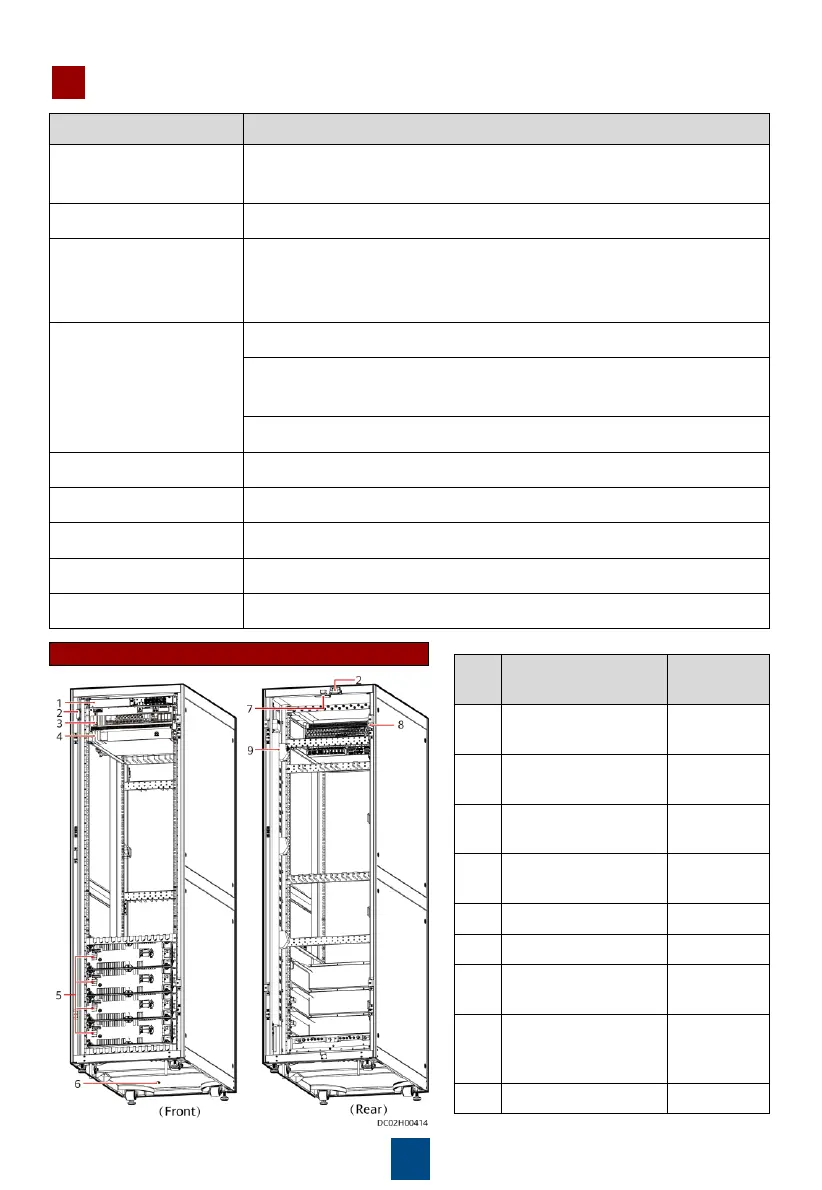

Cabinet Internal Layout (02116410)

Huawei FusionModule500 Specifications
