1.3 Network Architecture

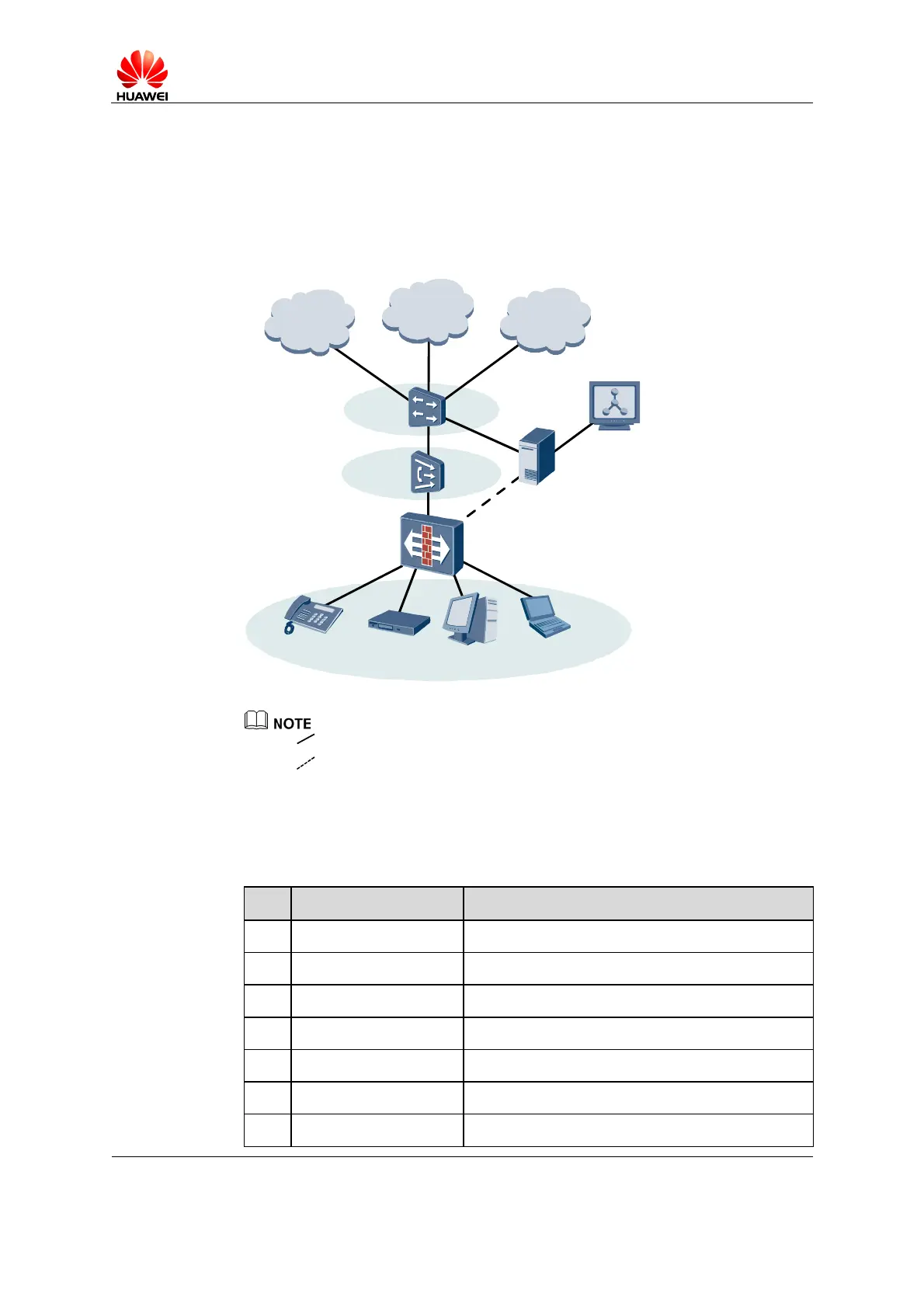

Figure 1-4 shows the location of the HG630 in the network.
Figure 1-4 Networking diagram of the HG630
2
9
8
11
12
7
4
5
3
1
6
10

indicates an actual network connection.

indicates a logical management channel.
Table 1-3 lists the network units in the networking diagram of the HG630.
Table 1-3 Network units in the networking diagram of the HG630
No. Item Full Name
1 NGN Next Generation Network
2 Internet -
3 IPTV Internet Protocol Television
4 BRAS Broadband Remote Access Server
5 DSLAM Digital Subscriber Line Access Multiplexer
6 OSS Operations Support System
7 ACS Auto-Configuration Server
