Huawei iBattery 3.0 User Manual

10
4

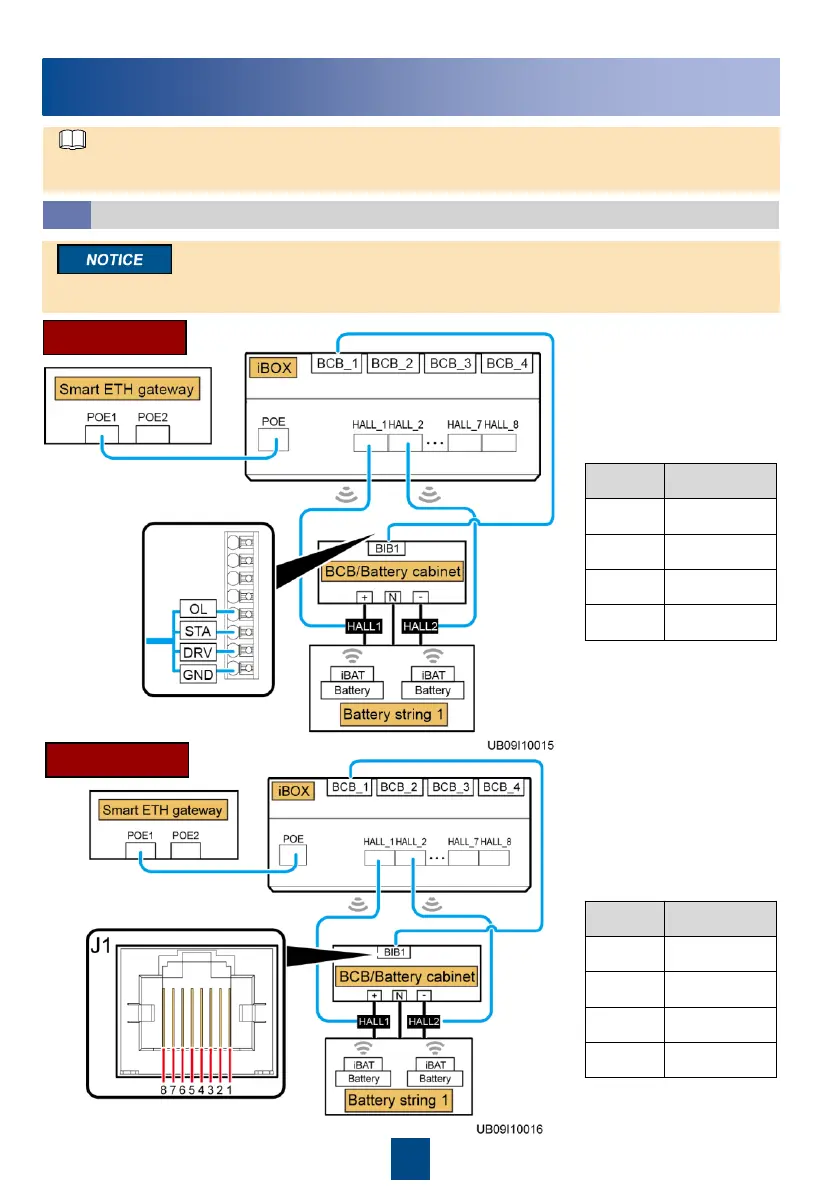

Cable Connections and Commissioning (EIC800 or ECC800
Scenario)
Connecting Cables
4.1
Old BIB board
BIB J1 iBOX BCB
5
OL
OL
6 STA
STA
7 DRV
DRV
8 GND
GND
New BIB board
The communications cable, with an RJ45 connector, delivered with the BCB box is used to connect
the new BIB board, and the cable without an RJ45 connector is used to connect the old BIB board.
This document describes the ECC800 as an example. For details about the EIC800, refer to the
ECC800 procedure.
NOTE
BIB J1 iBOX BCB
5
OL
OL
6 STA
STA
7 DRV
DRV
8 GND
GND
