Huawei ICD OPS D Series User Manual

ICD OPS D Series Product Overview
5
• POWER BUTTON
• RECOVER: one-click recovery button.
• HDD_LED: hard disk indicator.
• POWER_LED: power indicator.
• P_LED: 80pin power-on indicator.
• LINE_OUT: audio output interface.
• MIC_IN: microphone Jack.
• DP: DP display interface.
• HDMI: HDMI display interface.
• USB3.0: USB3.0 interface.
• USB2.0: USB2.0 interface.
• LAN: RJ45 network interface.
• LOCK HOLE: burglar lock hole.
Rear Panel
The rear panel of the ICD OPS D series is shown in Figure 3-3.

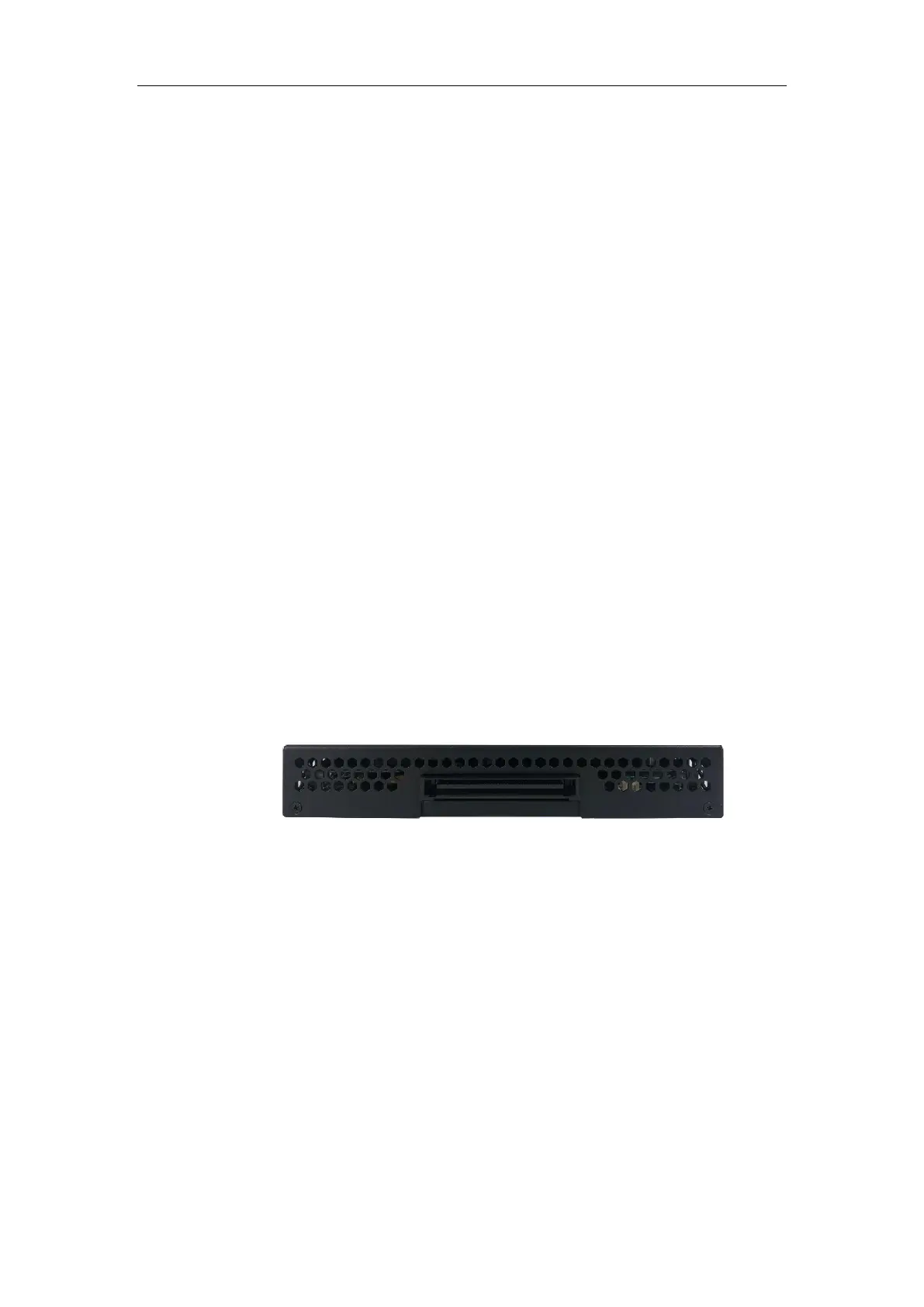

Figure 3-3 Rear panel
JAE Conn: 80pin extension interface, containing the primary signal:
• Power supply
• HDMI and DisplayPort
• USB2.0 /3.0
• UART

Huawei ICD OPS D Series Specifications

General

Brand	Huawei
Model	ICD OPS D Series
Category	Control Unit
Language	English
