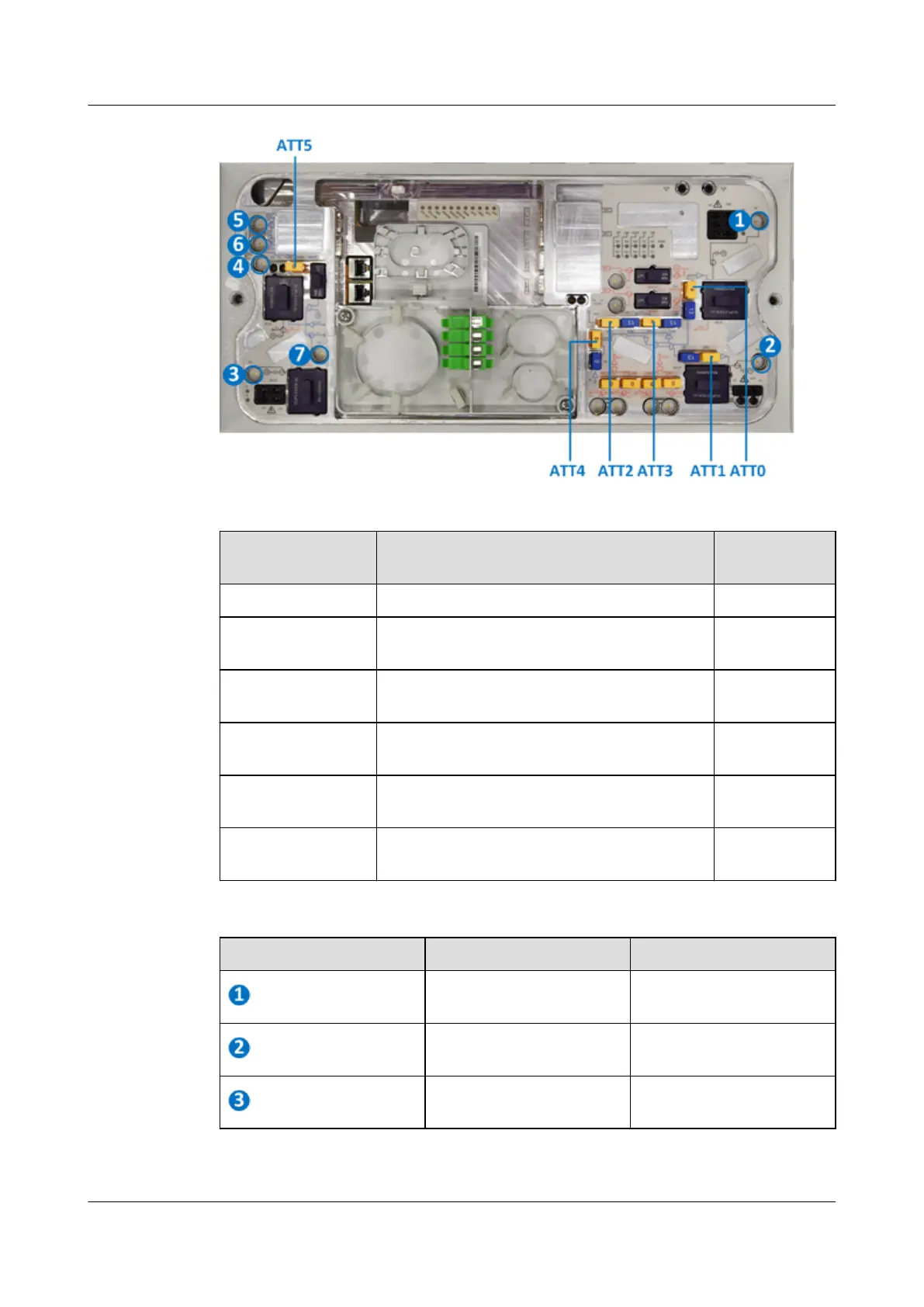

For details, see the following table.
Bracket to Be
Adjusted
Parameter to Be Adjusted Default value
(dB)
ATT5 Level of CATV signals. (Main) 0
ATT4 Level of combined CATV and downstream
DOCSIS signals.(Main)
0
ATT0 Level of combined CATV and downstream
DOCSIS signal of the RF OUT0.
4
ATT1 Level of combined CATV and downstream
DOCSIS signal of the RF OUT1.
4
ATT2 Level of combined CATV and downstream
DOCSIS signal of the RF OUT2.
4
ATT3 Level of combined CATV and downstream
DOCSIS signal of the RF OUT3.
4
No.
Test point Function
TP.1 Tests level of the RF OUT0
port signal.
TP.8 Tests level of the RF OUT1
port signal.
TP.9 Tests level of the RF OUT2
port signal.
MA5833-DD60
Hardware Commissioning Guide
5 Adjusting the Signal Level
