Connecting a Drainpipe
7.2

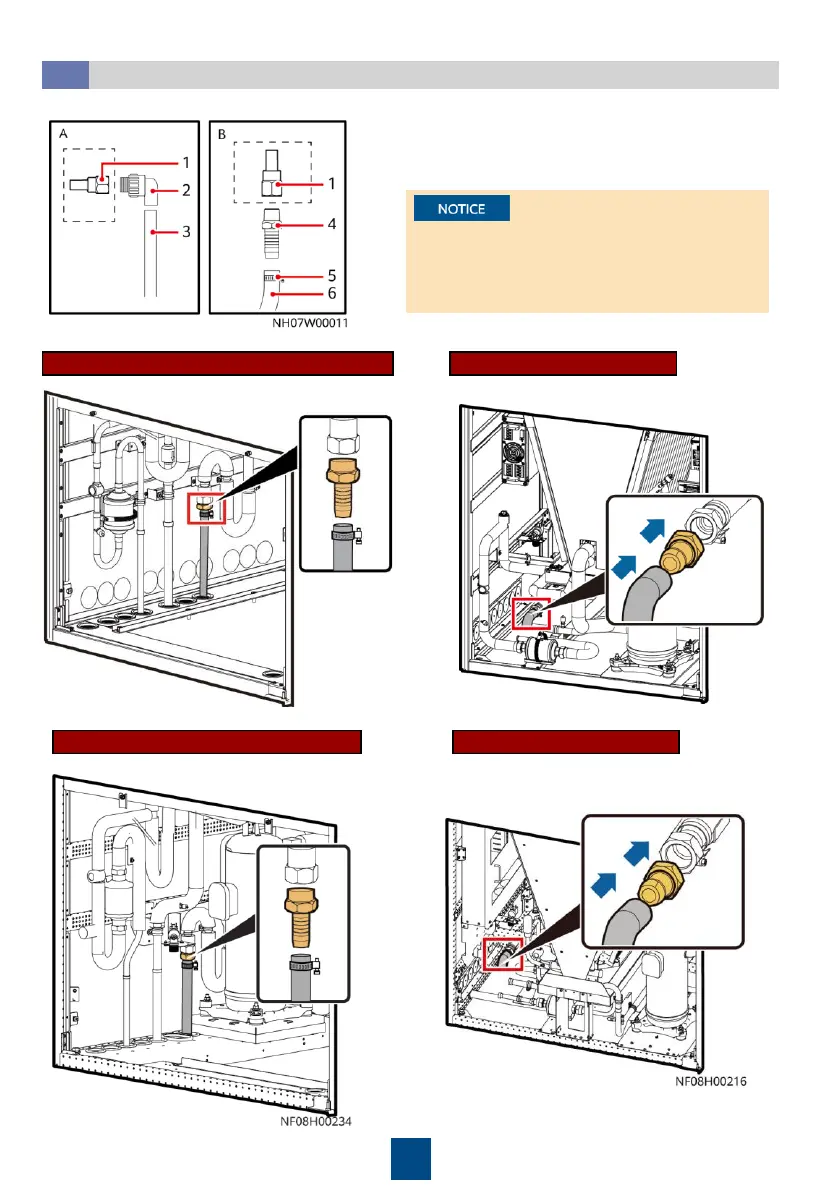

Connection method
(1) Connector with
internal screw threads
(4) Pagoda connector
(2) Adapter
(5) Hose clamp
(3) Rigid pipe
(6) Hose
The drainpipe from the unit to the
condensate branch pipe must have gradients
(> 1: 100). Significant upward trend and
stagnant water is not allowed along the pipe.
NetCol8000-A045 UpflowNetCol8000-A045/A055/A090 Downflow
NetCol8000-A060 UpflowNetCol8000-A060/A120 Downflow
