25
1. Outdoor units of different models have different electric control box layouts but the
same port silk screen. Ensure that cable labels are consistent with corresponding
terminal labels when connecting cables.

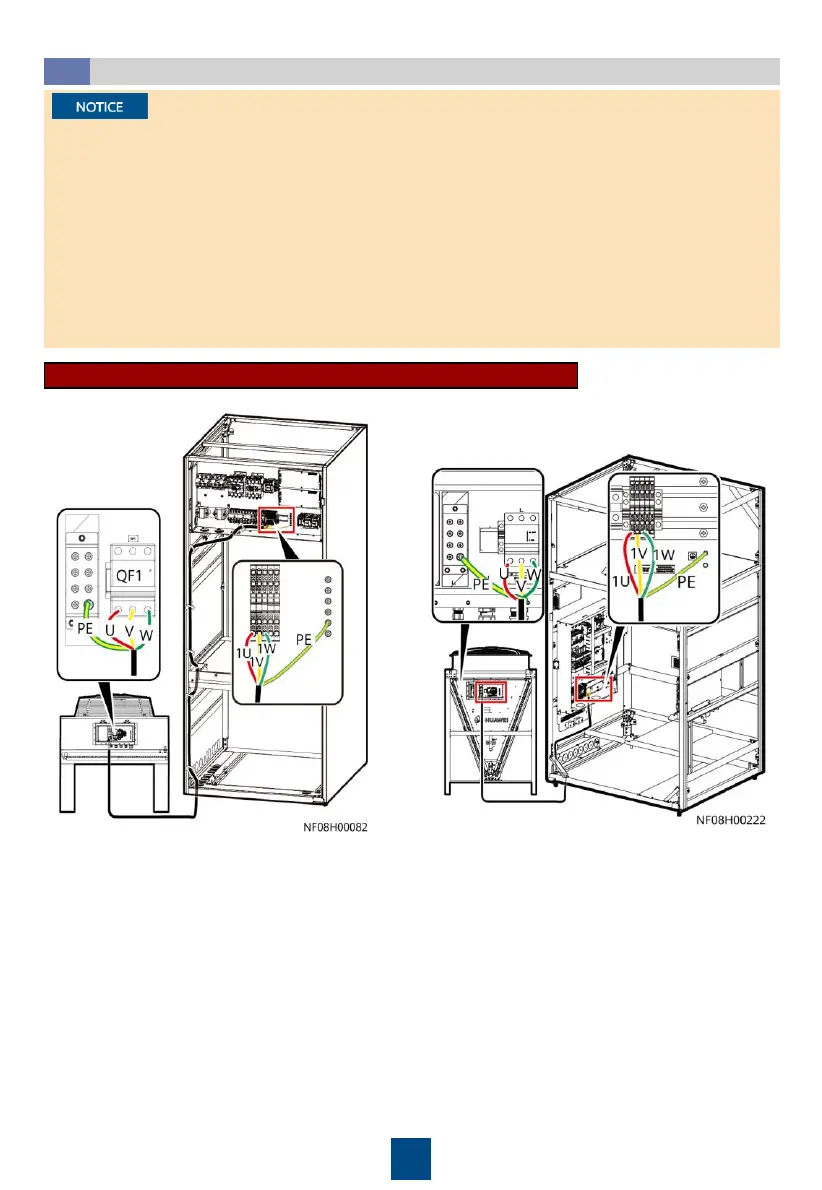

2. The following figure shows the cable routing of NetCol8000-A045 and NetCol8000-
A060. Connect 2U/2V/2W/PE to another outdoor unit if NetCol8000-A090 or
NetCol8000-A120 is configured.
3. The outdoor cables are sun- and water-proofed. It is recommended that tubes be
used for protection.
4. If the outdoor unit is NetCo500-A120, connect the outdoor unit power cables to the
QF1 and QF3 of the outdoor unit respectively.
5. The outdoor unit must be powered by the indoor unit.
Connecting the Outdoor Unit Power Cable
8.3
NetCol500-A060 NetCol8000-A045 NetCol500-A110 NetCol8000-A060
Connecting the Power Cable to an Air-Cooled Outdoor Unit
To Next Page
