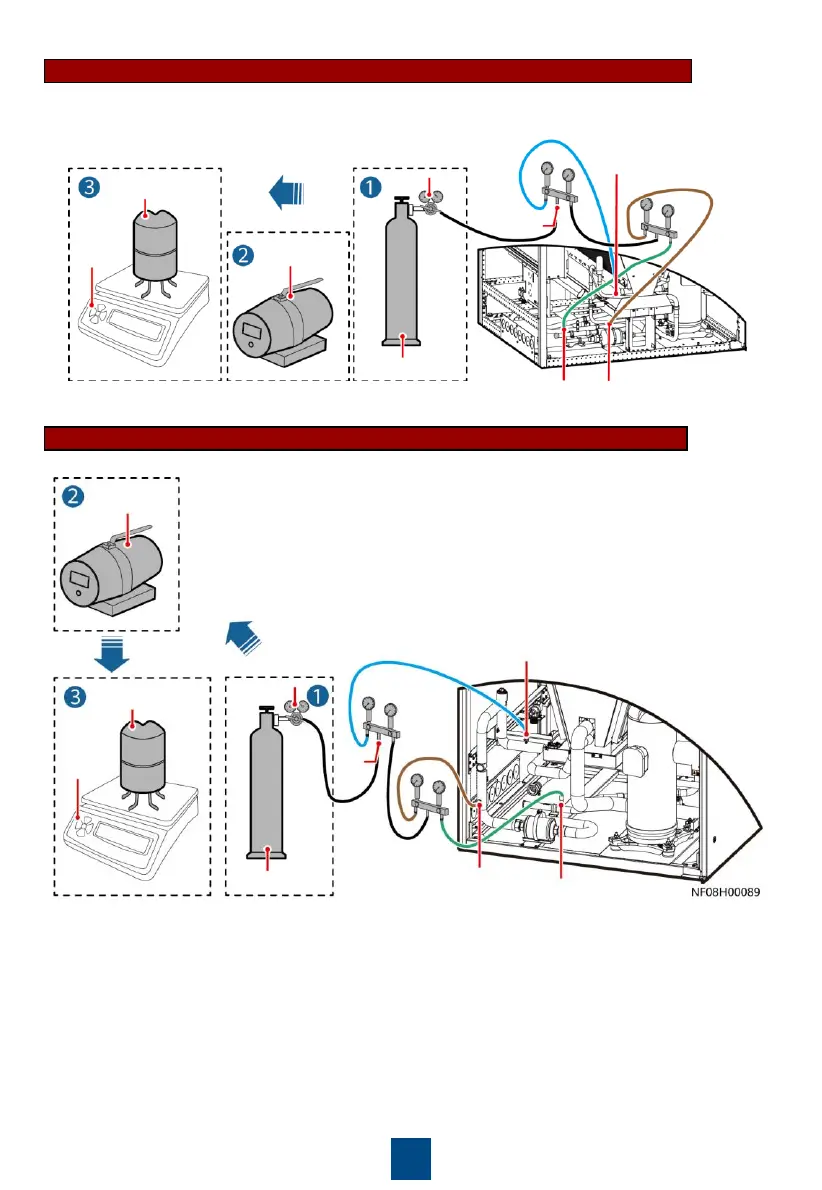

Scenario with a Low Temperature Component (NetCol8000-A045 Upflow)
1. Leak checking
2. Vacuuming
3. Precharging refrigerant
Nut
Reducing valve
Nitrogen
cylinder
Electronic
scale
Refrigerant
cylinder
Vacuum pump
Low-pressure needle valve
Exhaust pipe
needle valve
Liquid pipe
needle valve
Low-pressure
needle valve
Exhaust pipe
needle valve
Nut
Nitrogen
cylinder
Electronic
scale
Refrigerant
cylinder
Vacuum
pump
Low-pressure needle valve
Reducing valve
Scenario with a Low Temperature Component (NetCol8000-A060 Upflow)
1. Leak checking
2. Vacuuming
3. Precharging refrigerant
