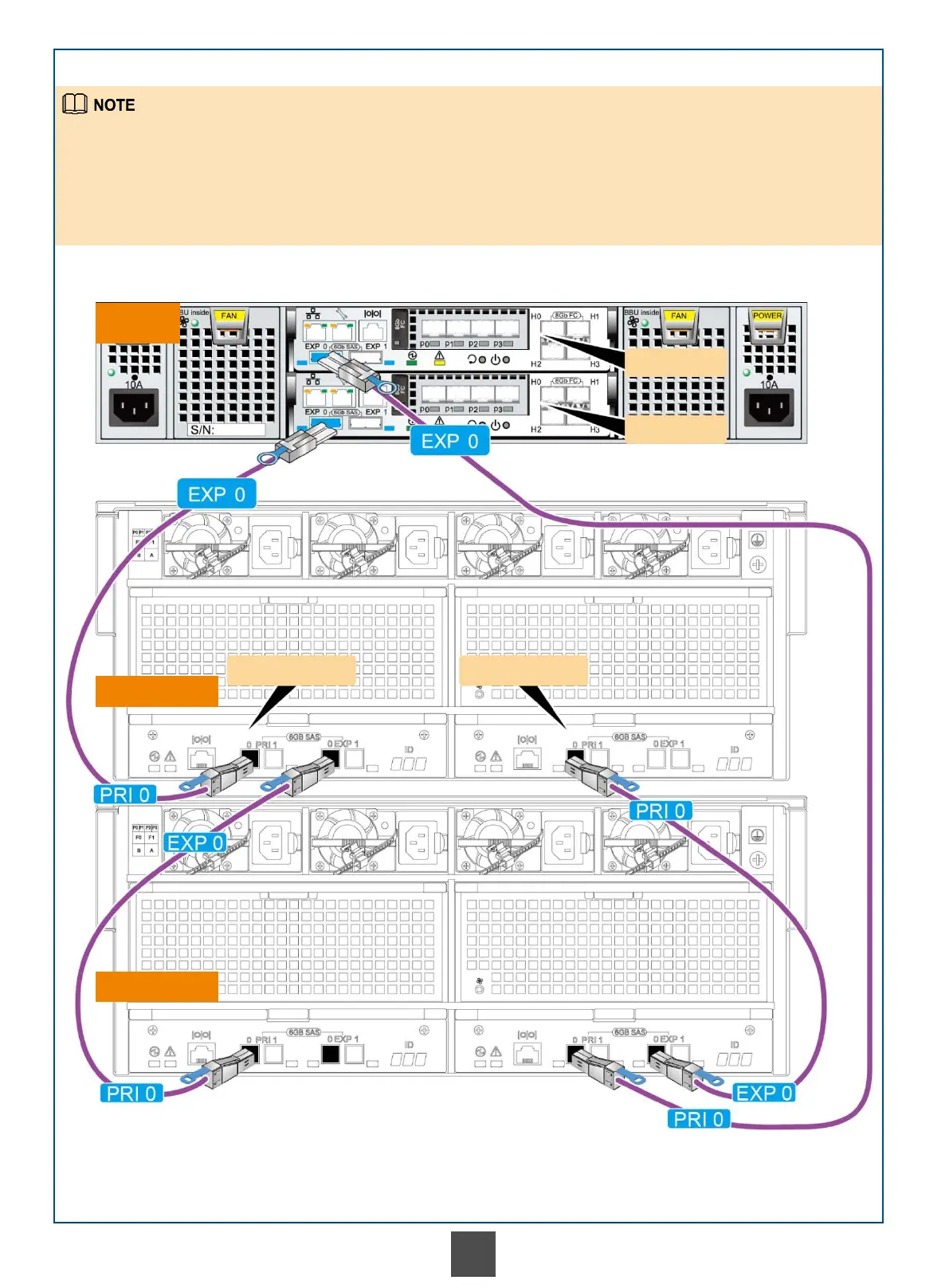

Scenario 2 Connecting high-density disk enclosures
18
Connect two high-density disk enclosures using mini SAS HD cables. Connect a controller enclosure to a
high-density disk enclosure using mini SAS HD to mini SAS cables. The cables must be naturally bent, and a
minimum of 97 mm clearance must be reserved in front of each enclosure for winding cables.
Note that ordinary disk enclosures and high-density disk enclosures cannot be simultaneously connected to a
SAS interface module.
High-density
disk enclosure 2
Controller
enclosure
High-density
disk enclosure 1
Controller A
Controller B
Expansion
module A
Expansion
module B
