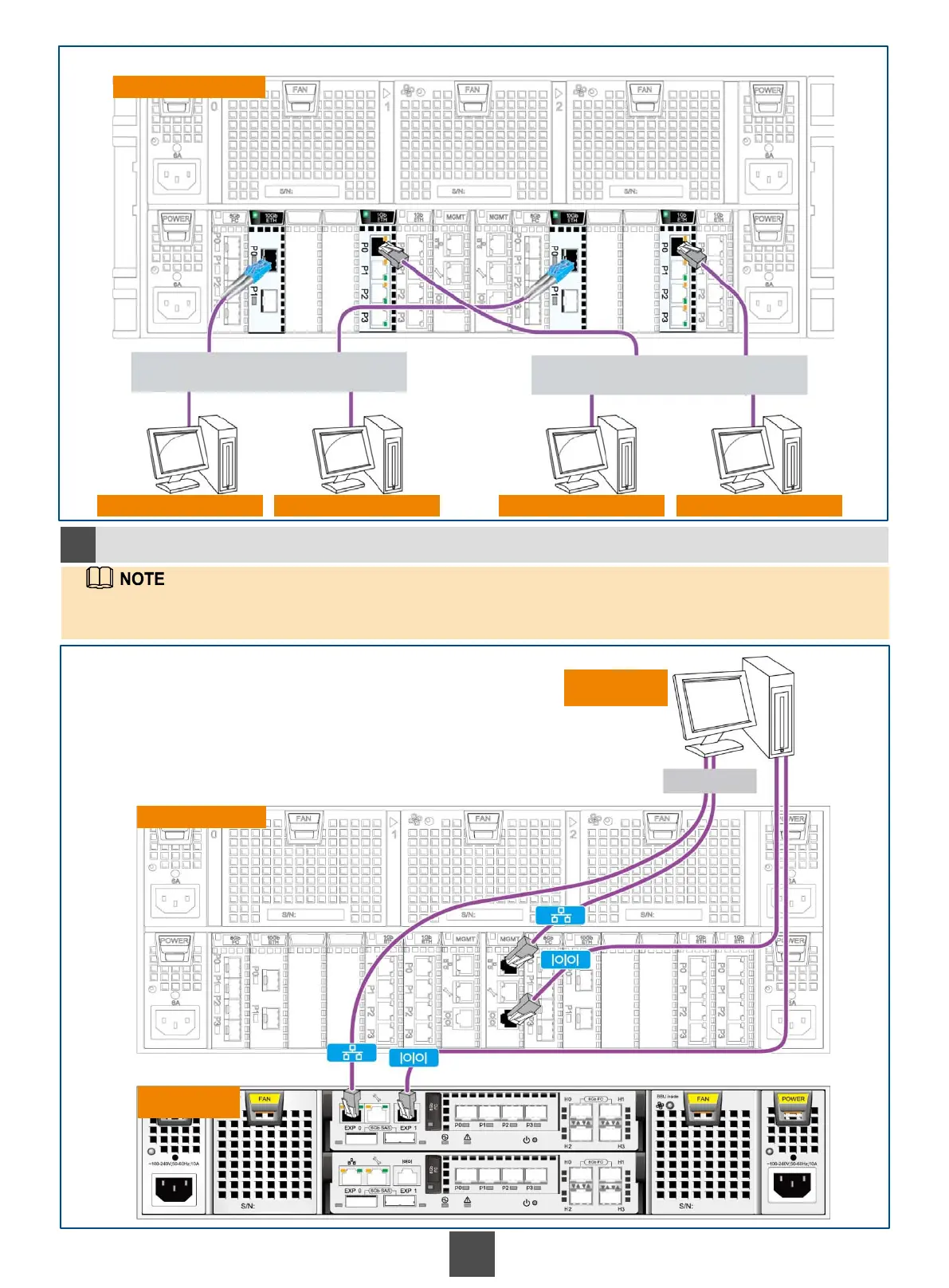

Scenario 3 The host port on the file engine is connected to the service network
21
Application server
File engine
LAN (Fiber Channel)
LAN (Ethernet)
3h
Connecting to the maintenance terminal
LAN
Application server Application server Application server
After connecting a serial port on the storage system to the maintenance terminal through a serial cable,
you can then manage and maintain the storage system from the maintenance terminal.
During initial configuration, set an IP address for the management network port through the serial port.
Maintenance
terminal
File engine
Controller
enclosure
Scenario 1
Controller enclosure and file engine connecting
a maintenance terminal
