Board
area
Fiber
cabling
area
Air filter
Fiber
spool
Fan tray
assembly
Mounting
ear
Fan tray
assembly
6

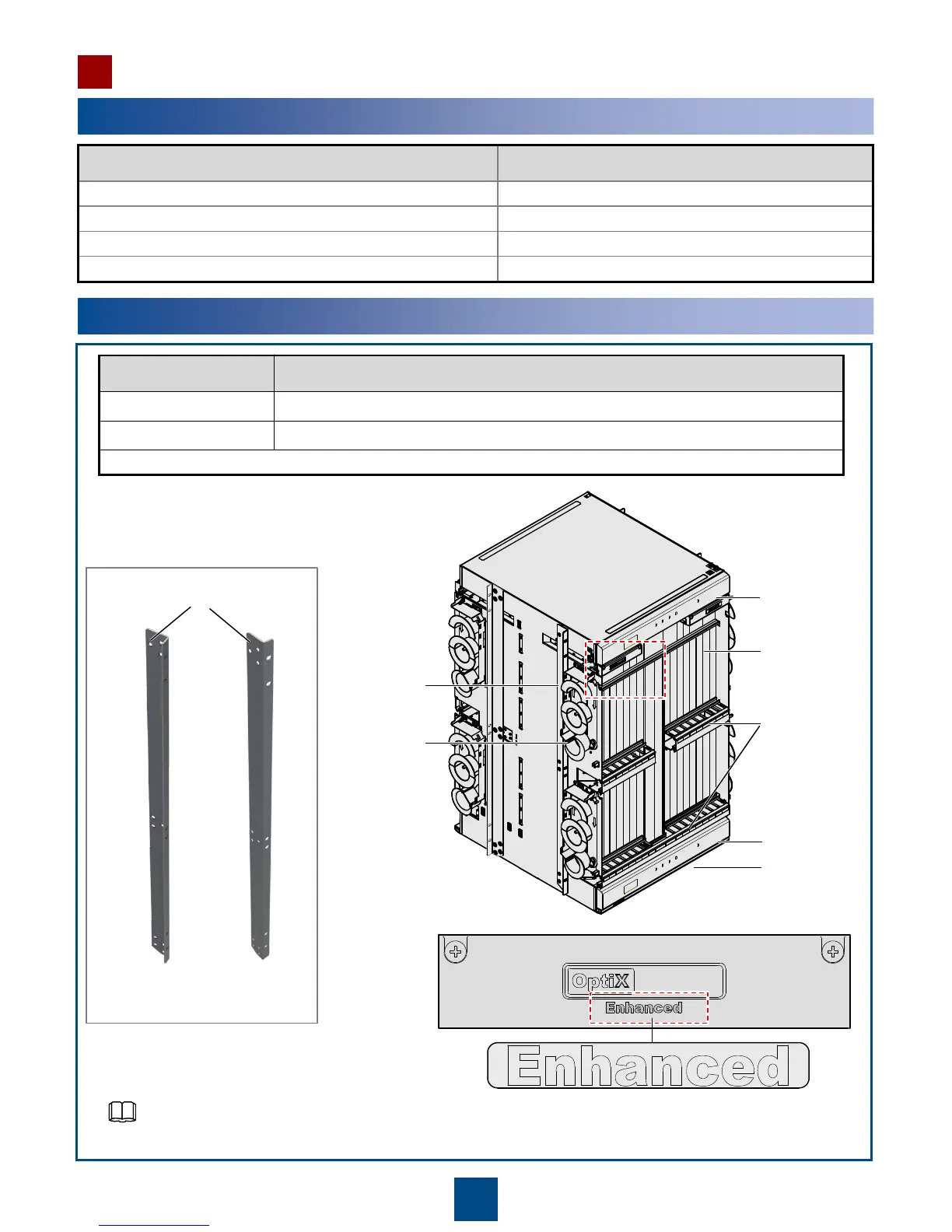

Appearance of the Subrack
2 OptiX OSN 8800 T64 Subrack
OSN 8800 T64
A subrack identified by "Enhanced" is an enhanced OptiX OSN 8800 T64 subrack. If the subrack is not identified by
"Enhanced", it is a general OptiX OSN 8800 T64.
NOTE
1 Product Access
Product Initial Supportive Product Version
OptiX OSN 8800 T64 subrack V100R002C00
OptiX OSN 8800 T32 subrack V100R002C00
OptiX OSN 8800 T16 subrack V100R006C00
OptiX OSN 8800 Universal Platform Subrack V100R008C00
Item Specification
Dimensions
498 mm (W) x 580 mm (D) x 900 mm (H) (19.6 in. (W) x 22.8 in. (D) x 35.4 in. (H))
Weight (empty subrack
a
)
65 kg (143 lb.)
a: An empty subrack means no boards are installed in the board area, and no fan tray assembly or air filter is installed.
This end is secured to
the subrack.
Mounting ear
for the left side
of the subrack
Mounting ear for
the right side of
the subrack
