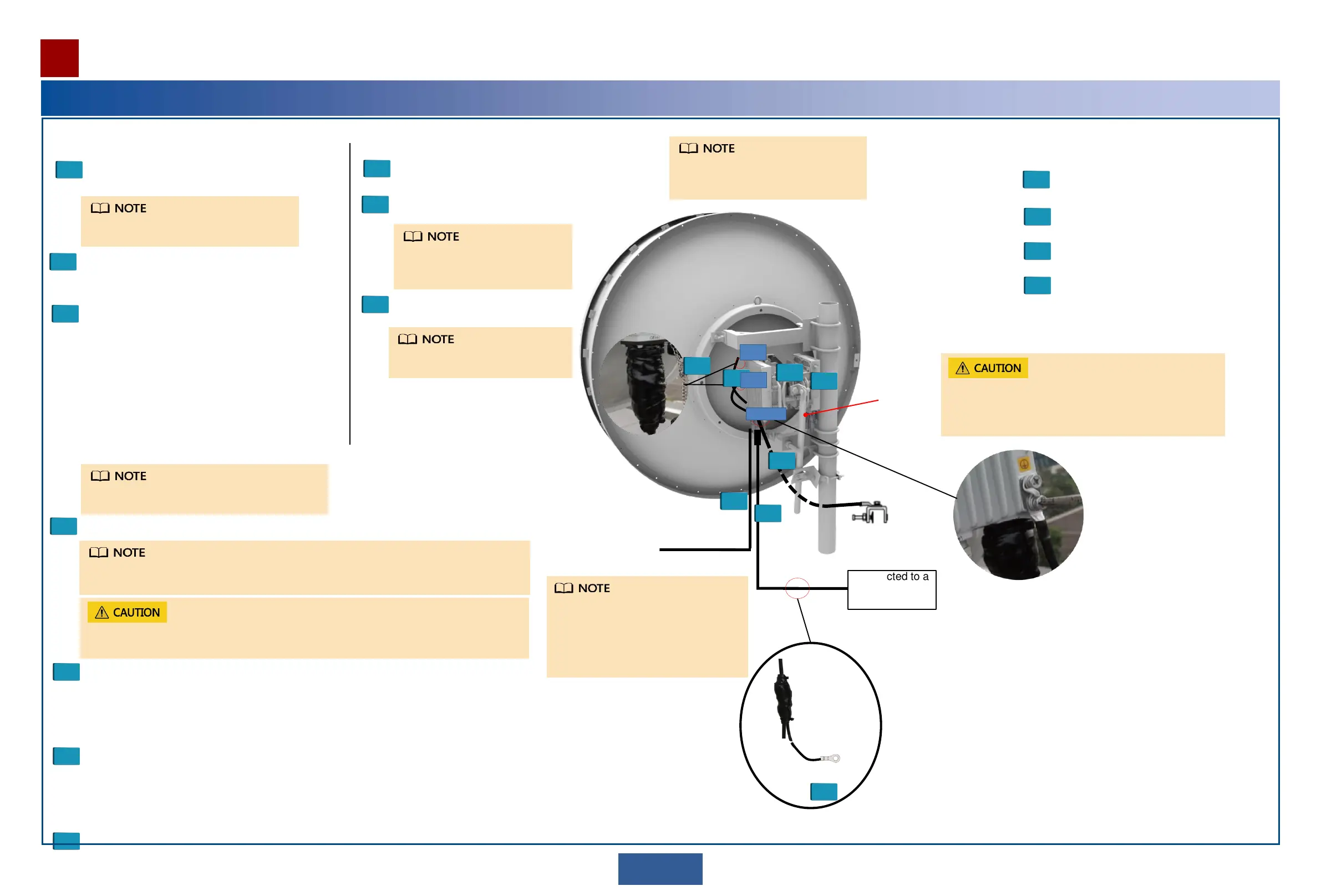

Huawei OptiX RTN 320F - Installation at a 4+0 or 3+0 Site

Installing the OAU 2F
Installation procedure
10
Use the Web LCT to configure NE data.
Align antennas.
Check the installation.
Connected to a
power supply
device
Power on the OAU 2F.
Commissioning procedure
1
2
3
4
6
7
1
2
3
5
Connected to one 10GE
(optical) service
Grounded through
the ground clip
4
Install an outdoor fiber or network cable.
 Connect an outdoor fiber or network cable to a port.
 Lay out the outdoor fiber or network cable.
 Attach a yellow label to the fiber or network cable, and write a number on the label
according to the plan.
5
Install a DC power cable.
 Connect a DC power cable to the DC power port in the maintenance compartment.
 Lay out the DC power cable.
 Select ground points for the DC power cable, and install ground clips.
 Attach a matte white label to the DC power cable.
6
Install an IF cable. Connect the IF ports of the OAU 2F and XMC ODU using an IF cable.
7
Waterproof DC power cable, ground clips, and IF cable connectors.
3
Install the XMC ODU on the OAU 2F.
 Install the joining kit on the XMC ODU.
 Install the XMC ODU on the OAU 2F.
Install the joining modules of the XMC ODU and
OAU 2F on the antenna.
 When the XMC-3/3H ODU is used, first install the
joining modules of the XMC ODU and OAU 2F on
the hybrid coupler together with the other XMC
ODU, and then install the coupler on the antenna.
 When the XMC-5D ODU is used, install the
joining modules of the XMC ODU and OAU 2F on
the dual coupler, and the install the dual coupler
on the antenna.
2
3
Install the XMC ODU on the antenna.
2
Install the OAU 2F on a pole or wall.
Integrated installation
Split installation
4
IF2
IF1
10GE1(o)
Side strut
7
DC
power
cable
DC
power
cable
Connect to a
ground bar
4 Installation at a 4+0 or 3+0 Site
In the example integrated installation, the XMC-5D
ODU is used.
For details about how to install the
XMC ODU, see RTN XMC ODU
Quick Installation Guide.
For the method of installing an antenna,
follow the antenna installation guide
delivered with the antenna.
For the method of making and laying out an IF cable, see the RTN XMC ODU Quick Installation
Guide.
Do not remove or insert an IF cable connector from or to the OAU 2F with power on. Otherwise,
human injuries may be caused.
The GE1(e) or GE2(e) port can be used
to transmit/receive electrical services, and
the 10GE1(o) or 10GE2(o) port can be
used to transmit/receive optical services.
In this example, the 10GE1(o) port is
used.
When the XMC-5D ODU is installed on a dual coupler and is
used with the OAU 2F, a side strut must be installed for
antennas with a diameter of 1.2 m or more to facilitate better
load bearing.
1
Install a ground cables of the OAU 2F and
XMC ODU .
Install the device-side ground cable before
you climb up the tower.
1
Install a ground cable of the OAU 2F.
Install the device-side ground cable
before you climb up the tower.
