Operation Manual - QoS/ACL

Quidway S5000 Series Ethernet Switches Chapter 2 QoS configuration

2-11

2.3 QoS Configuration Example

I. Networking requirement

The intranet is connected through Ethernet ports between departments and the wage

query server is connected through the port GigabitEthernet0/1 (subnet address

129.110.1.2). For the wage server, the inbound traffic is limited at 20 Mbps and the

outbound traffic at 20 Mbps on the average. Those packets exceeding the threshold will

be labeled with priority level 4.

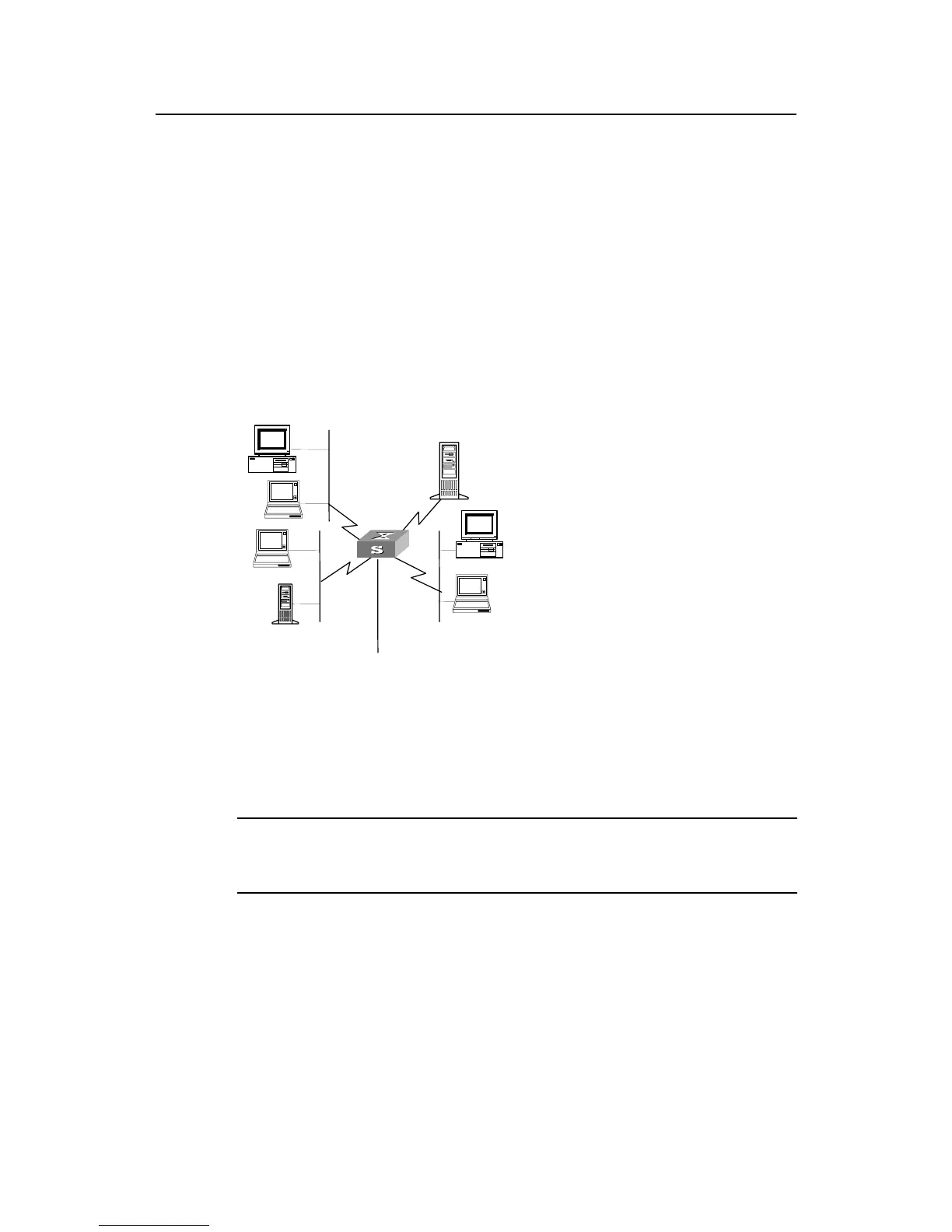

II. Networking diagram

Wage server

129.110.1.2

Switch

GE0/1

To router

Figure 2-2 Networking for QoS configuration

III. Configuration procedure

 Note:

Only the commands concerning QoS/ACL configuration are listed here.

1) Define outbound traffic of the wage server.

# Enter name-based advanced ACL view using the traffic-of-payserver.

[Quidway] acl name traffic-of-payserver advanced

# Define the traffic-of-payserver rule in the advanced ACL.

[Quidway-acl-adv-traffic-of-payserver] rule 1 permit ip source 129.110.1.2

0.0.0.0 destination any
