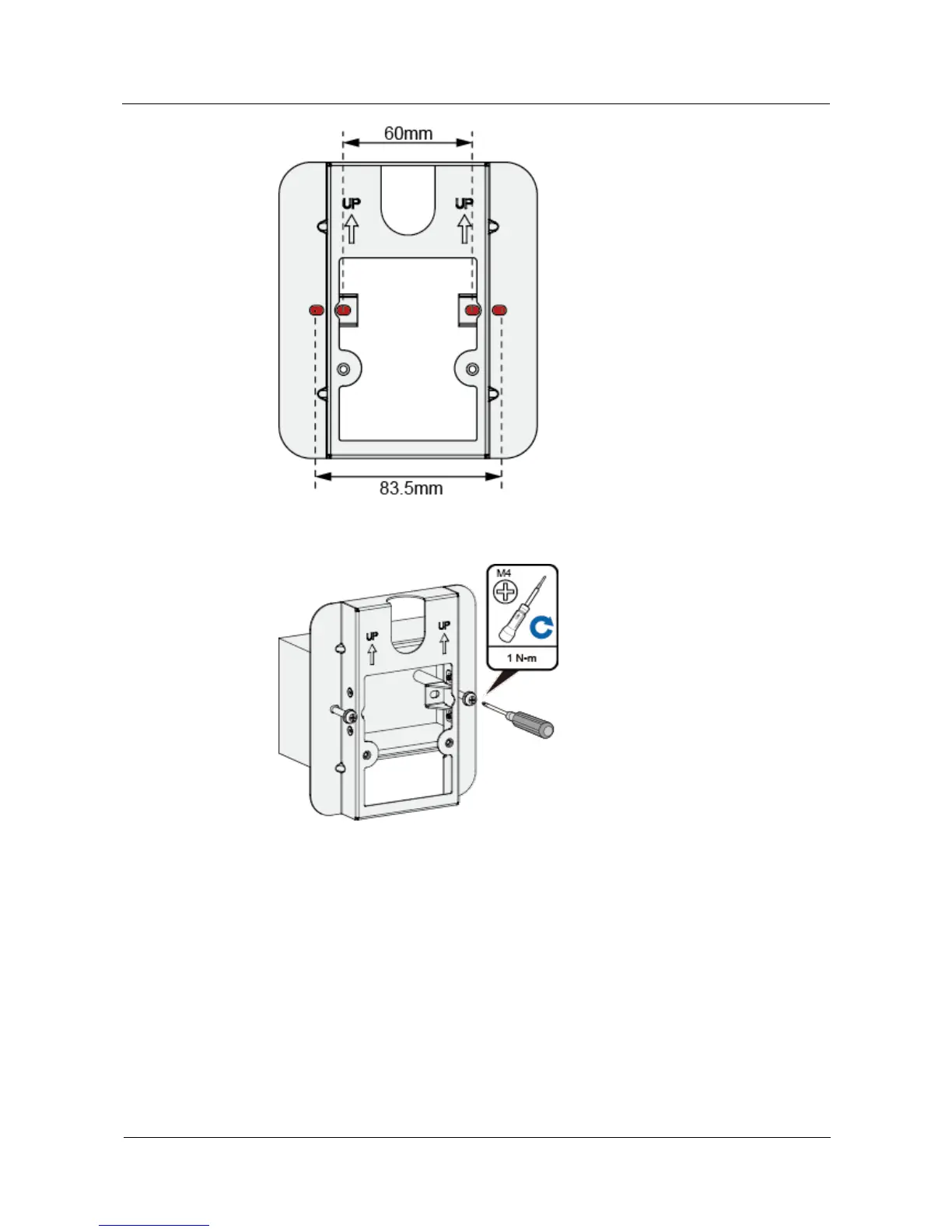

2. Use screws to fix the mounting bracket to the junction box. Ensure that the UP
arrowhead points upwards. If the screw holes on the junction box do not match the M4
screws, customers need to prepare the fastening screws by themselves.
3. Connect the network cable to the GE/PoE interface and the telephone line to the phone
interface.
