5 Ground screw 6 AC power socket
NOTE
It is used with an AC power cable.
7 Jack reserved for AC power cable
locking strap
NOTE
The AC power cable locking strap is not
delivered with the switch.
- -
Indicators

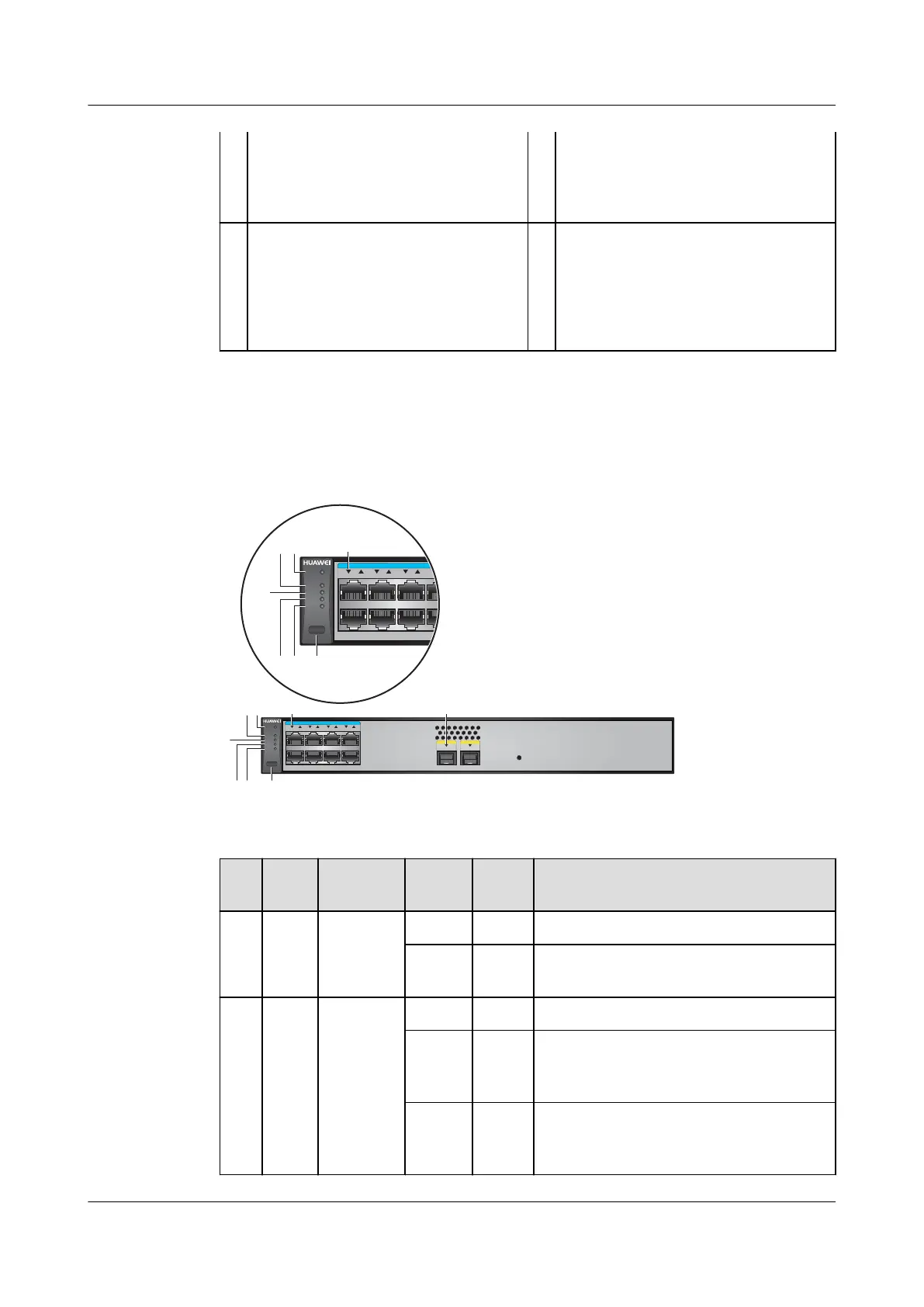

Figure 5-14 shows the indicators on an S1720-10GW-PWR-2P.
Figure 5-14 Indicators on an S1720-10GW-PWR-2P
MODE
SPED
STAT
SYS
PWR
PoE
12 34 56 78
S1720-10GW-PWR-2P
9 10
RST
1
7
7
6
2
54
3
MODE
SPED
STAT
SYS
PWR
PoE
12 34 56 7
S1720-10GW-PWR-2P
1
7
6
2
54
3
Table 5-16 Description of indicators on the switch
No
.
Indic
ator
Name Color Statu
s
Description
1 PWR Power
indicator
- O The switch is powered o.
Green Stead
y on
The system power supply is normal.
2 SYS System
status
indicator
- O The system is not running.
Green Fast
blinki
ng
The system is starting.
Green Slow
blinki
ng
The system is running normally.
