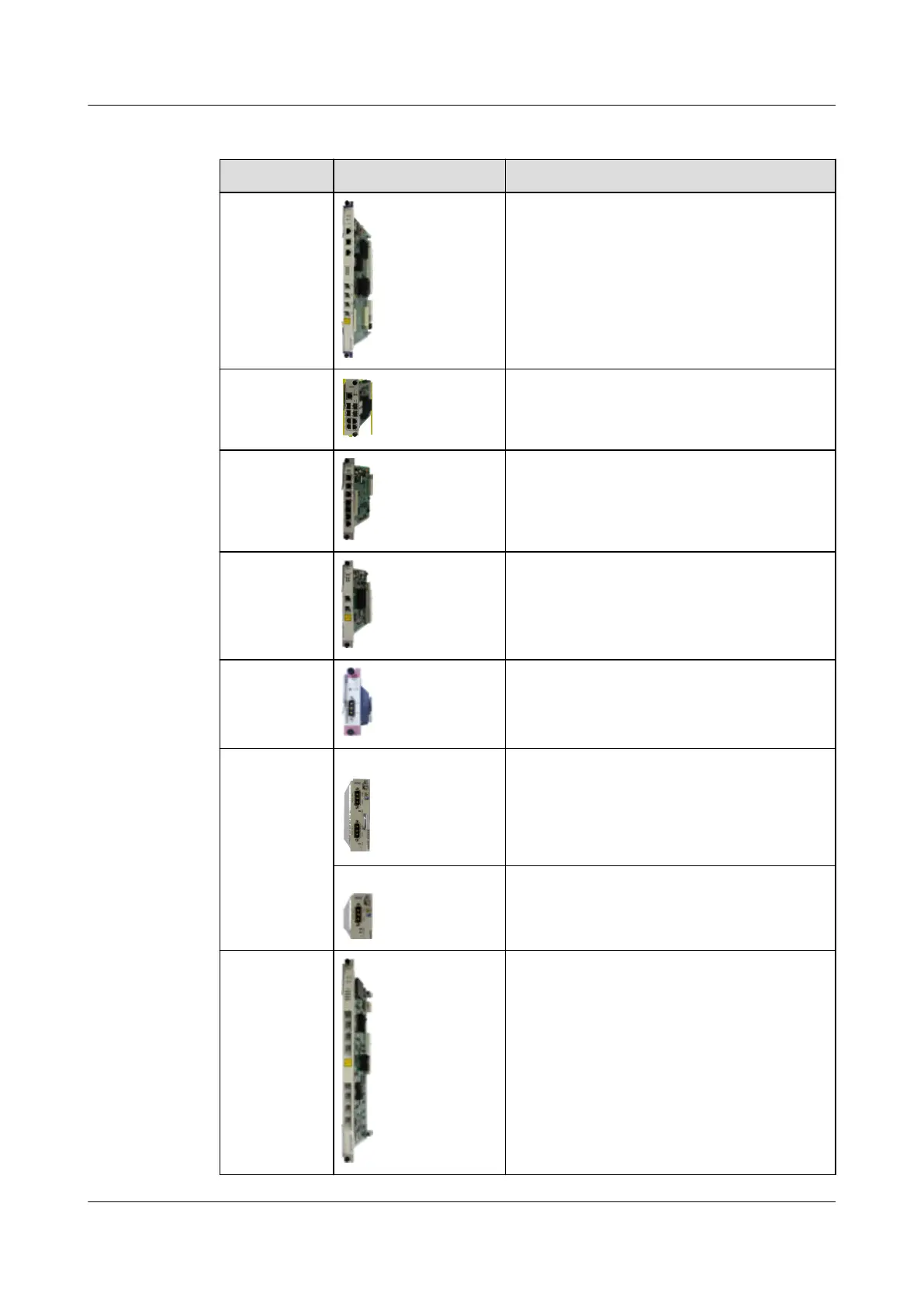

Table 3-1 Board dimensions
Board Type Board Appearance Dimensions (W x D x H)
Control
board(SCU)
25.40 mm x 237.00 mm x 395.40 mm
Control
board(MCU)
35.56 mm x 237.00 mm x 134.84 mm
Universal
interface
board
25.40 mm x 237.00 mm x 183.20 mm
Upstream
interface
board
25.40 mm x 237.00 mm x 197.20 mm
Power
board(PRT)
25.40 mm x 237.00 mm x 105.10 mm
Power
board(MPW)
MPWC/MPWD: MPWC/MPWD: 35.56 mm x 252.70 mm x
132.10 mm
MPWE: MPWE: 35.56 mm x 245.25 mm x 65.60 mm
Service board 22.86 mm x 237.00 mm x 395.40 mm
