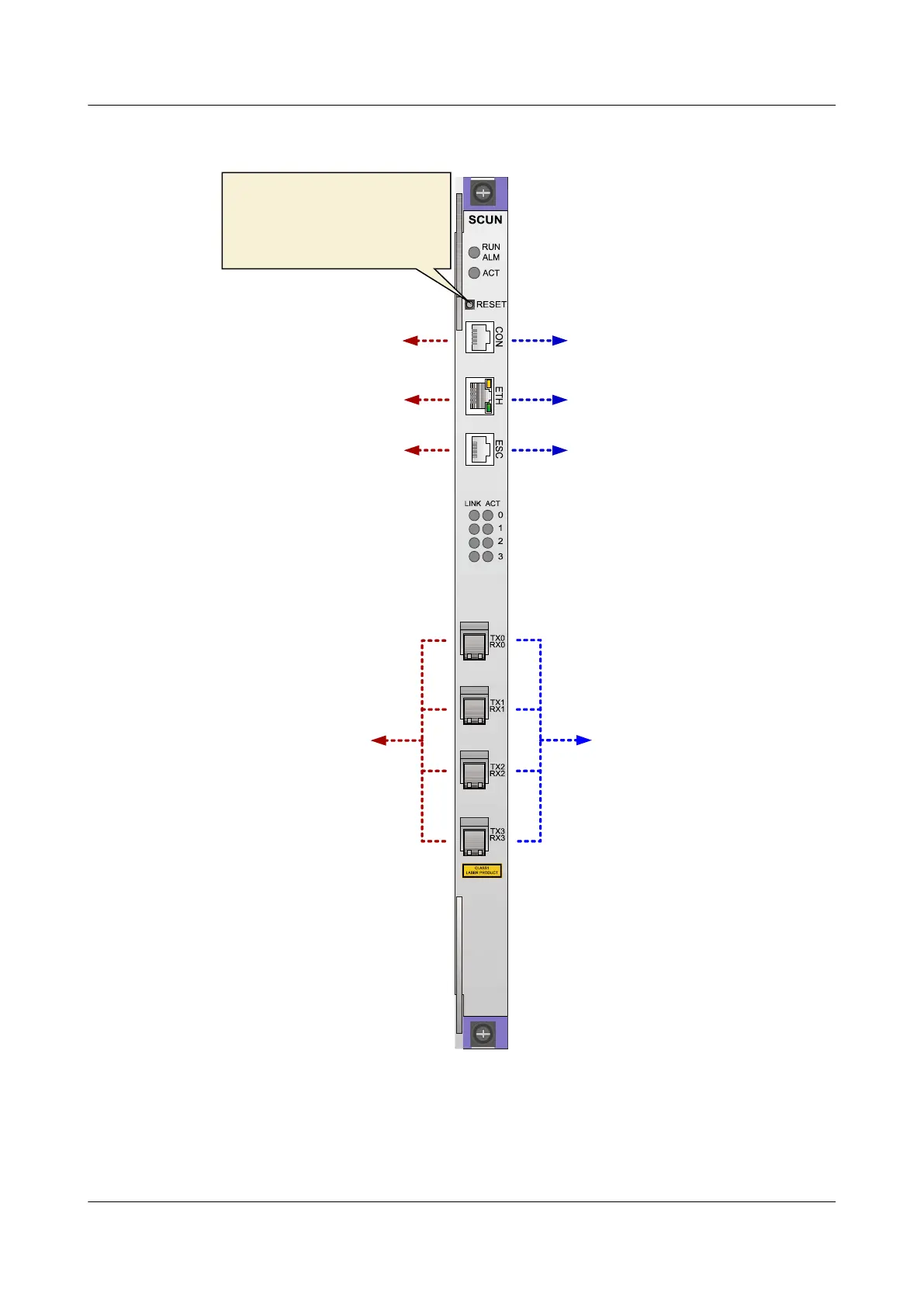

Front Panel Port
Connected to the GE
port of the upper-layer
device or the cascaded
device
This button is used to reset the
board manually. Resetting the
board interrupts the services.
Hence, exercise caution when
using the reset button.
Upstream transmission
or cascading ports
(GE)
RS-232 serial port
10/100/1000M Base-T
maintenance network port
RS-485 monitoring
serial port
Connect to the Ethernet
port of the maintenance
terminal
Connect to the serial
port of the maintenance
terminal
Connect to the serial
port of the monitored
device
For details about supported optical module, see 4.3 GE Optical/Electrical Module.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Hardware Description
3 Board
Issue 24 (2018-07-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
232
