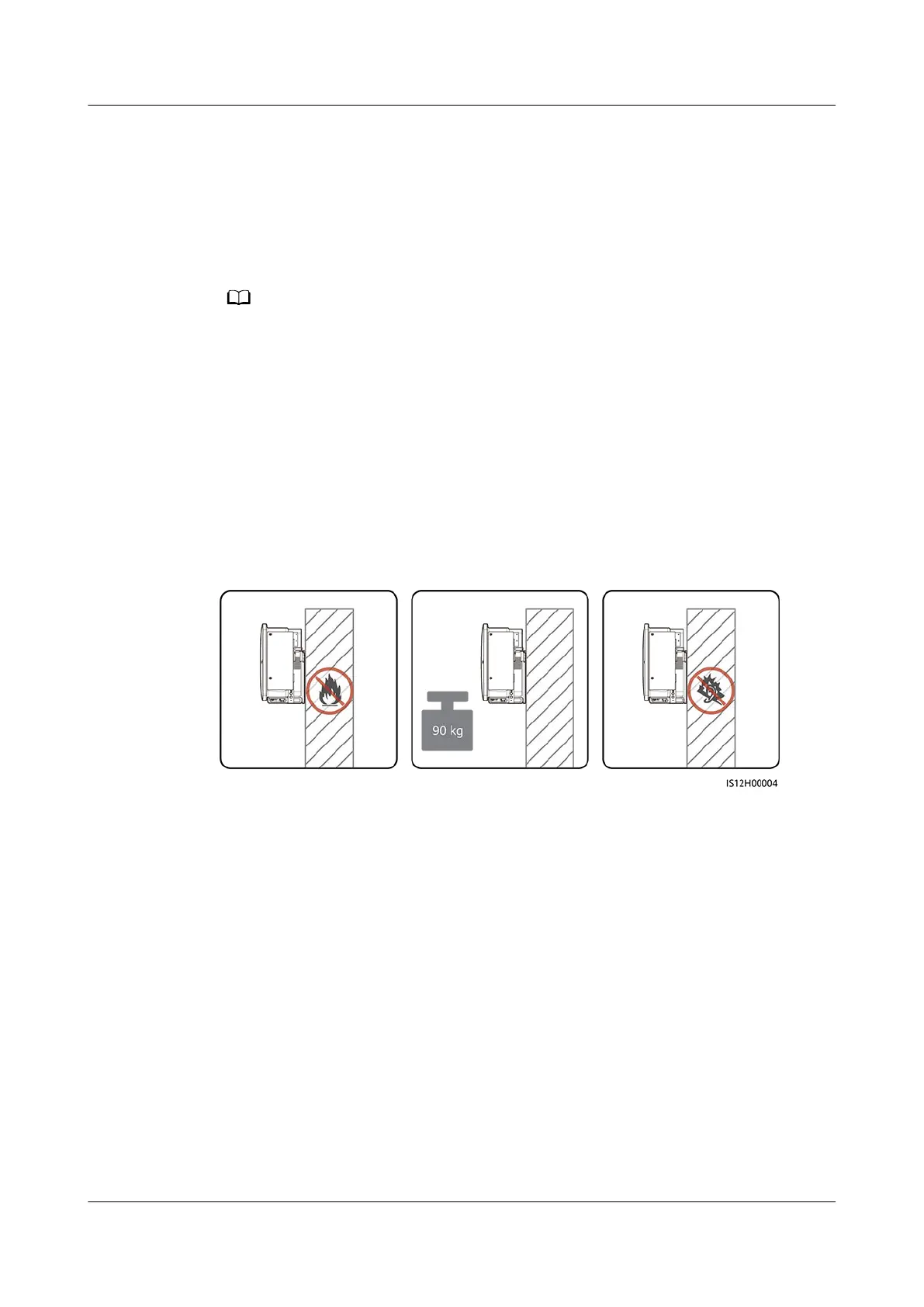

Figure 4-2 Mounting structure
Installation Angle Requirements
The solar inverter can be support-mounted or wall-mounted. The installation
angle requirements are as follows:
● Install the solar inverter vertically or at a maximum back tilt of 75 degrees to
facilitate heat dissipation.
● Do not install the solar inverter at forward tilted, excessive back tilted, side
tilted, horizontal, or upside down positions.
Figure 4-3 Angle
Installation Dimensions Requirements
Reserve enough space around the solar inverter for installation and heat
dissipation.
SUN2000-(100KTL, 110KTL, 125KTL) Series
User Manual 4 Installation
Issue 07 (2020-09-15) Copyright © Huawei Technologies Co., Ltd. 28
