Huawei SUN2000-110KTL-M0 User Manual

● SUN2000 app: Log in to Huawei AppGallery (https://appstore.huawei.com),
search for SUN2000, and download the app installation package. You can also
scan the QR code (https://appgallery.cloud.huawei.com/appdl/C10279542) to
download the installation package.

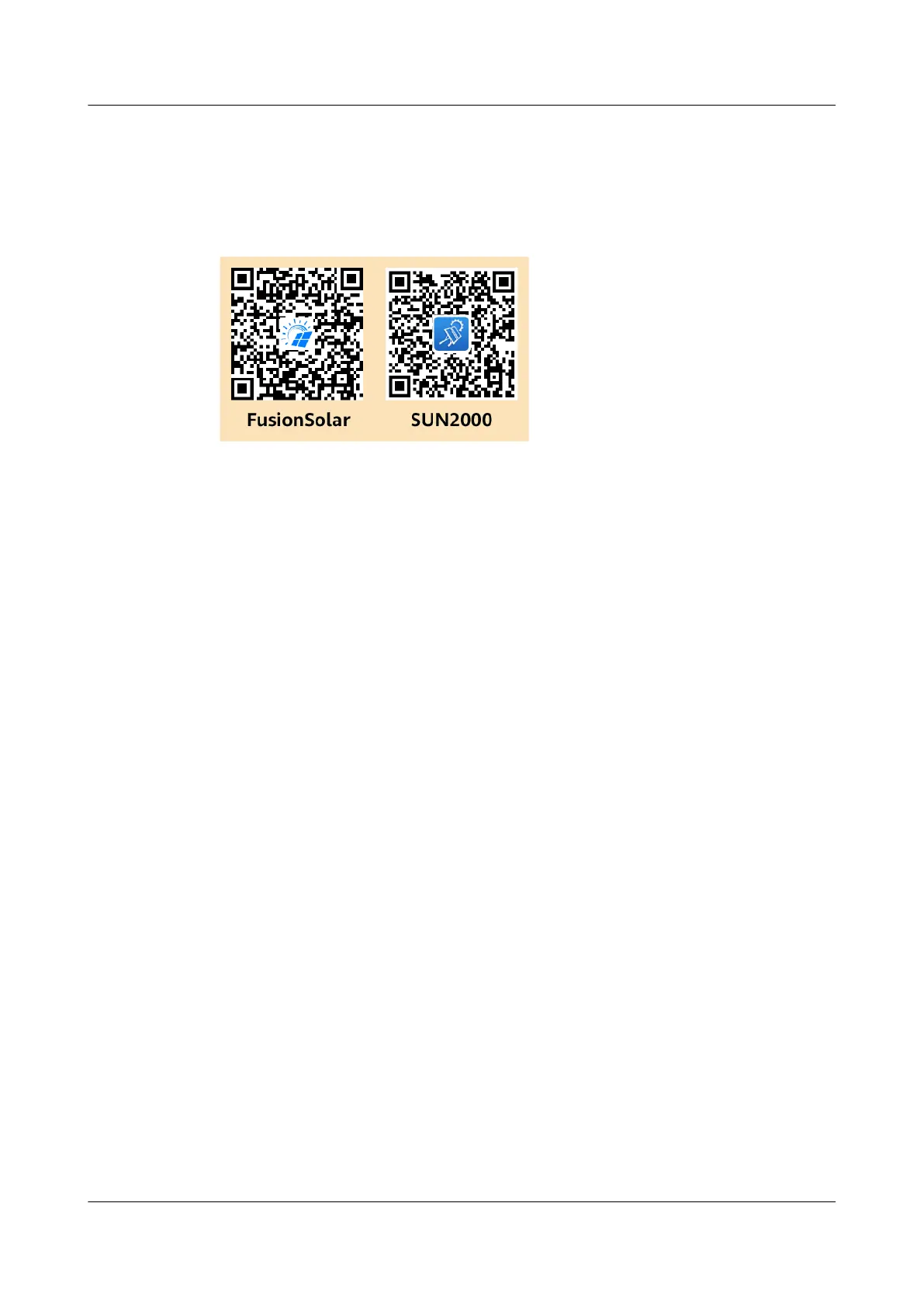

QR code:
7.1.3 Logging In to the App
Prerequisites
● The DC or AC side of the SUN2000 has been energized.
● Connection over a WLAN module or a Bluetooth module:
a. The WLAN module or Bluetooth module is connected to the USB port at
the bottom of the SUN2000.
b. The WLAN or Bluetooth function is enabled.
c. Keep the mobile phone within 5 m from the SUN2000. Otherwise, the
communication between them would be
aected.
● Connection over a USB cable:
a. The USB data cable is connected from the USB port at the bottom of the
SUN2000 to the port on the mobile phone.
b. If the USB data cable is successfully connected, the message Connected
to USB Accessory will pop up on the phone. Otherwise, the cable is not
connected.
Procedure
1. Run the app and select a connection mode.
SUN2000-(75KTL, 100KTL, 110KTL, 125KTL) Series
User Manual 7 Man-Machine Interactions
Issue 11 (2021-11-10) Copyright © Huawei Technologies Co., Ltd. 74

Huawei SUN2000-110KTL-M0 Specifications

General

Model	SUN2000-110KTL-M0
Type	String Inverter
Rated Output Power	110 kW
Max. DC Power	132 kW
Max. Input Power	132 kW
Max. DC Voltage	1100 V
Max. Input Voltage	1100 V
Start Voltage	200 V
Nominal Output Voltage	400 V
Rated AC Voltage	400 V
Output Frequency	50 Hz / 60 Hz
Rated AC Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion (THD)	< 3%
Efficiency	98.6%
Max. Efficiency	98.8%
European Weighted Efficiency	98.5%
Protection Level	IP65
Protection Degree	IP65
Max. Input Current per MPPT	20 A
Power Factor Adjustment Range	0.8 leading ... 0.8 lagging
Operating Temperature	-25 °C to +60 °C
Operating Temperature Range	-25°C ~ +60°C
Number of MPPTs	6
Number of MPPT Trackers	6
