Huawei SUN2000-12KTL Quick Installation Guide

2
1. The antitheft lock is prepared by customers.
2. For details about wall-mounting the device, see the SUN2000 (8KTL-28KTL) User Manual.

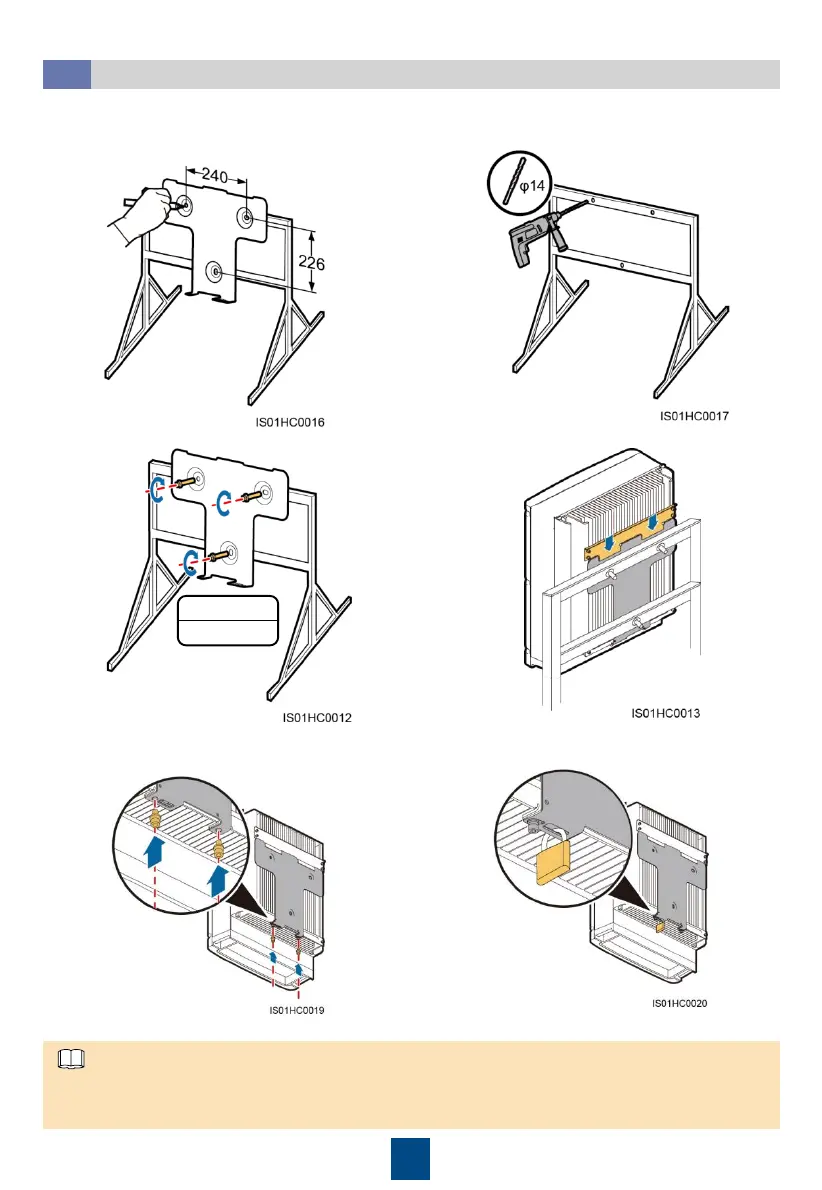

1. Determine the hole positions on the support
based on rear panel dimensions.
2. Drill holes.
3. Secure the rear panel.
5. Tighten hexagon bolts.
6. (Optional) Install an anti-theft lock.
M10 (3 PCS)
30 N·m
Unit: mm
NOTE
Installing an Inverter (support-mounting is used as an example)
1.2
4. Mount the inverter on the rear panel.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
