Huawei SUN2000-12KTL Quick Installation Guide

6
No.
Color Pin Definition
1
White and
orange
RS485A, and
RS485 differential
signal+
2
Orange
RS485B, and
RS485 differential
signal
-
3
White and
green
PGND
4
Blue
RS485A, and
RS485 differential
signal+
5
White and blue
RS485B, and
RS485 differential
signal
-
6
Green
PGND
7
White and
brown
PGND
8
Brown
PGND
Plastic
base
Matching nut
Sealing
washer
Cable
sealing nut
The side without buckles

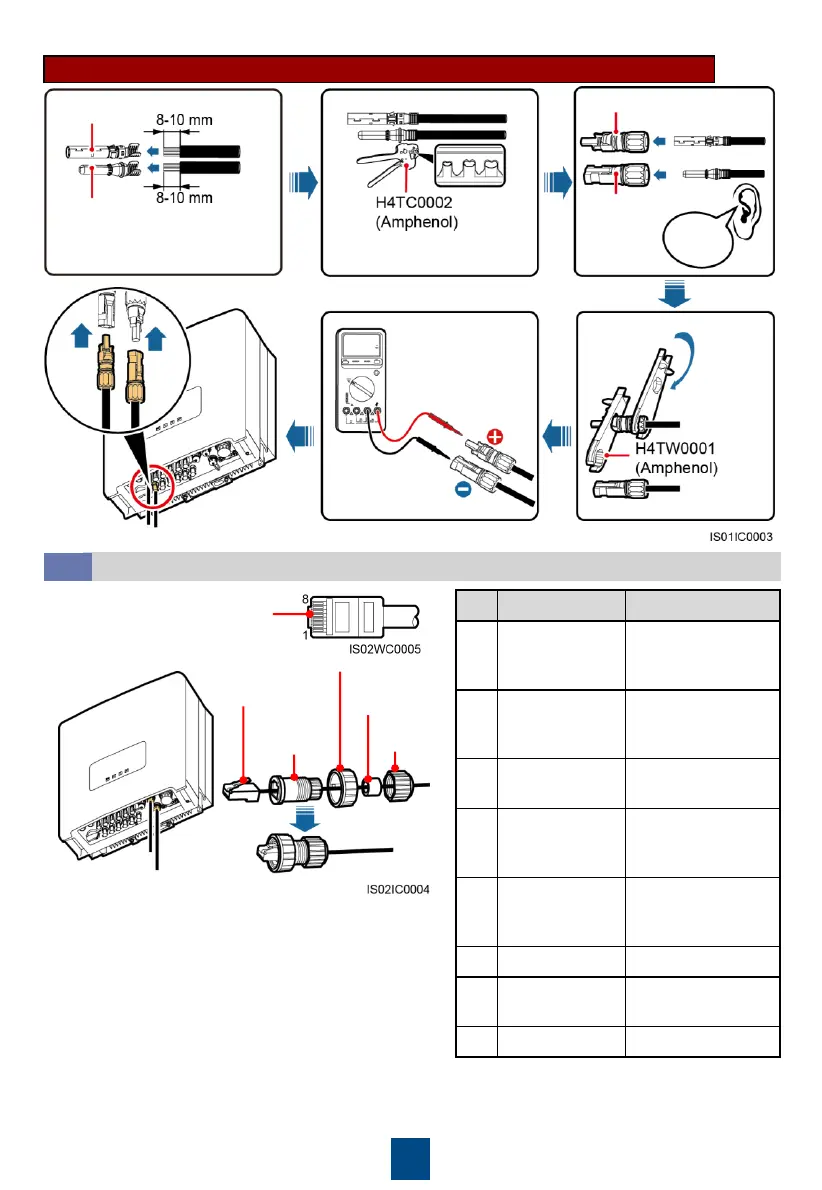

Installing RS485 Communications Cables
2.4
Positive connector
Negative
connector
Common PV cables with a
cross-sectional area of 4 mm²
are recommended.
Ensure that cables cannot
be removed after crimped.
Click
Positive metal contact
Negative metal contact
Ensure
that the
locking nut
is secured.
Ensure that the
cables are correctly
connected and the
voltage does not
exceed 1000 V DC.
Installing a DC input power cable (using metal stamping forming contacts)
RJ45
connector with
shielding
functions

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
