Huawei SUN2000-175KTL-H0 Quick Guide

2

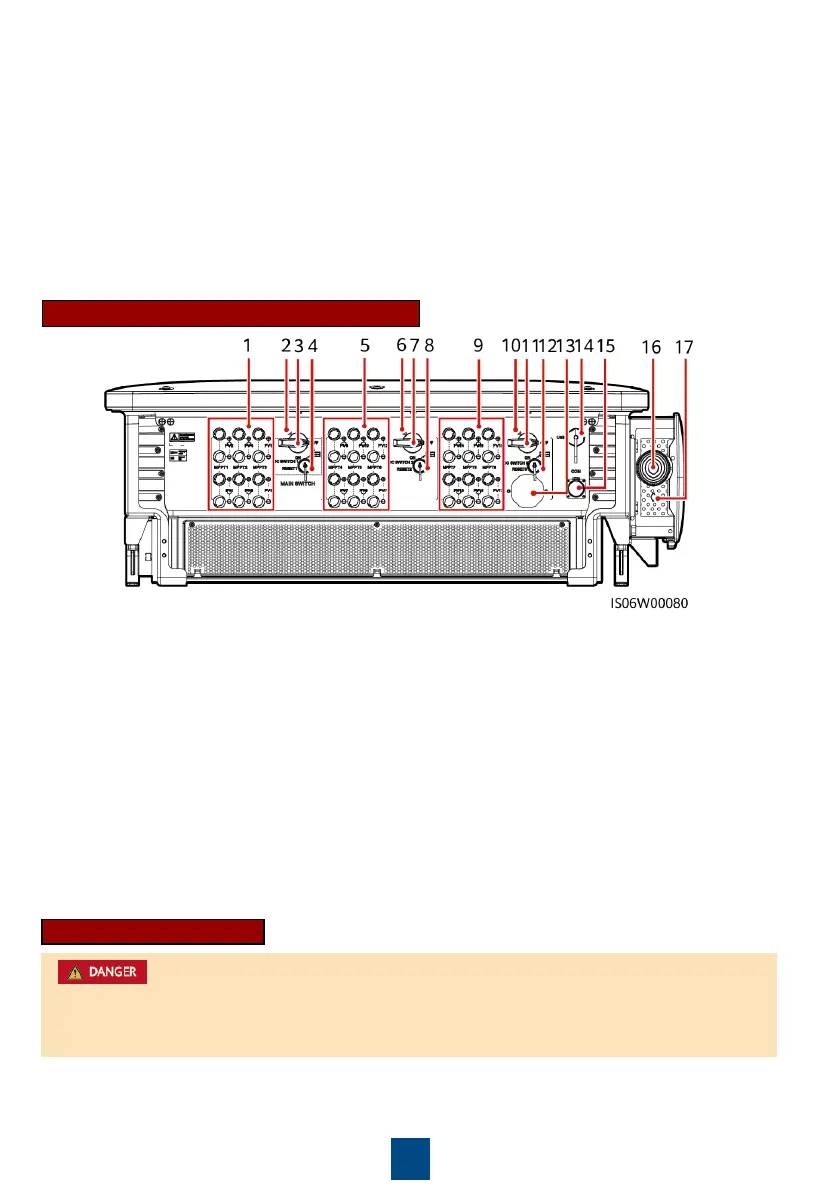

Port Illustration (Automatic DC Switch)
(1)
DC input terminals (controlled by DC SWITCH 1
)
(2) (Optional) Screw hole for DC switch 1
(3
) DC switch 1 (DC SWITCH 1)
(4
) Reset button 1 (RESET 1)
(5
)
DC input terminals (controlled by DC SWITCH 2)
(6) (Optional) Screw hole for DC switch 2
(7) DC switch 2
(DC SWITCH 2)
(8) Reset button 2
(RESET 2)
(9) DC input terminals (controlled by DC SWITCH 3)
(10)
(Optional) Screw hole for DC switch 3
(11)
DC switch 3 (DC SWITCH 3)
(
12) Reset button 3 (RESET 3)
(
13) Ventilation valve
(
14) USB port
(15) Communications port (COM)
(16)
Hole for the AC output power cable
(17)
Hole for the tracking system power cable
(1
) DC input terminals (controlled by DC SWITCH 1)
(2) (Optional)
Screw hole for DC switch 1
(3
) DC switch 1 (DC SWITCH 1)
(4
) DC input terminals (controlled by DC
SWITCH 2)
(5
) (Optional) Screw hole for DC switch 2
(6
) DC switch 2 (DC SWITCH 2)
(7
) DC input terminals (controlled by DC SWITCH 3)
(8
) (Optional) Screw hole for DC switch 3
(9
) DC switch 3 (DC SWITCH 3)
(10
) Ventilation valve
(11
) USB port (USB)
(12) Communications port (COM)
(13)
Hole for the AC output power cable
(14) Hole for the tracking system power cable
DC Switch Description
The DC switches automatically turn off when a fault occurs in the inverters (LED4 is steady red,
and the three DC switches are OFF). In this case, contact your technical support. Do not turn on
the DC switches by yourself.
