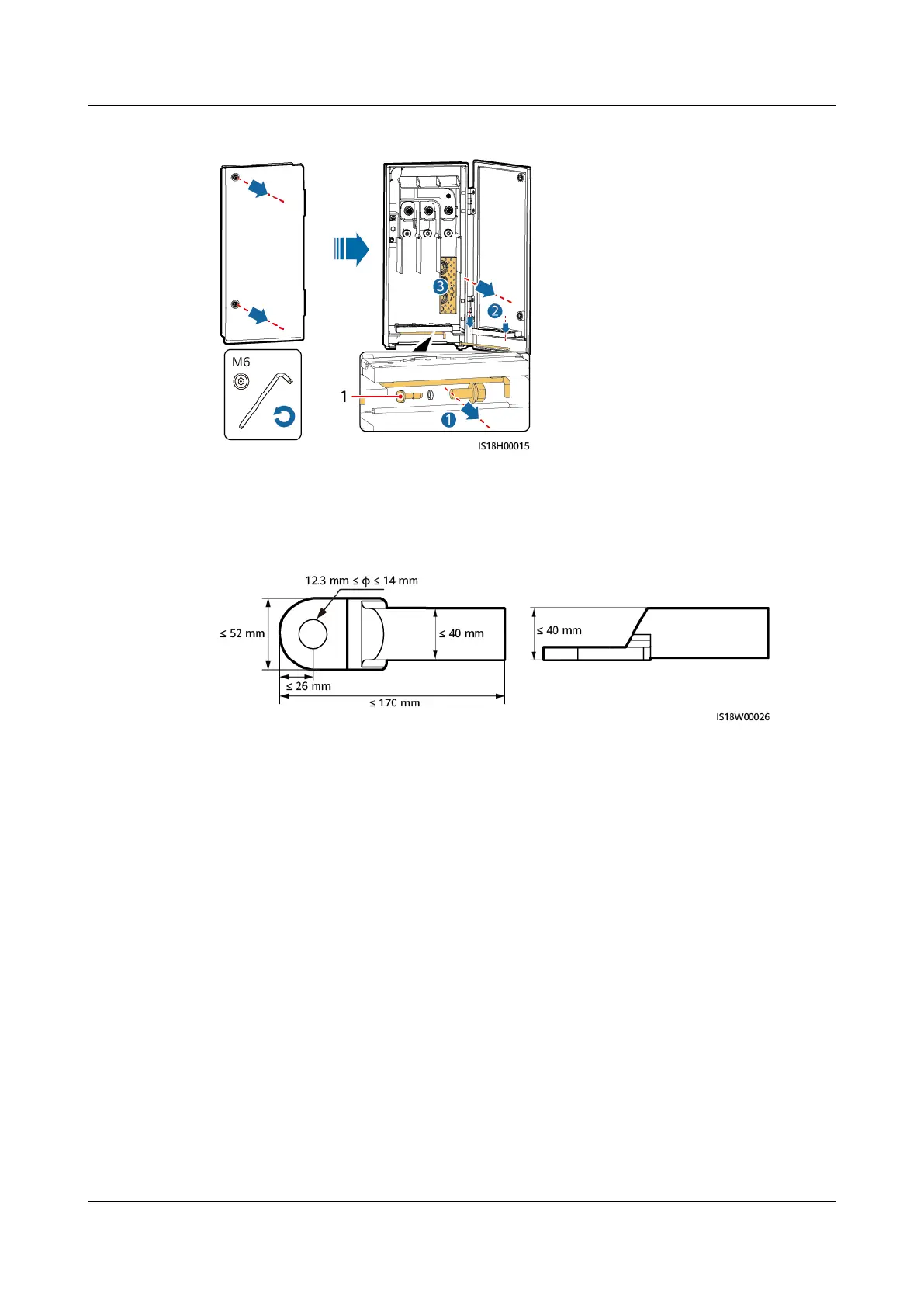

Figure 5-4
Opening a maintenance compartment door
(1) Position for binding the gr
ound scr
ew
Step 2
Connect the AC output power cables based on the cable type.
Figure 5-5
Specications
of the crimped O
T/DT terminal
SUN2000-(250KTL, 280KTL
, 300KTL, 330KTL) Series
User Manual
5 Electrical Connections
Issue 07 (2023-06-30)
Copyright © Huawei T
echnologies Co., Ltd.
48
54
56
