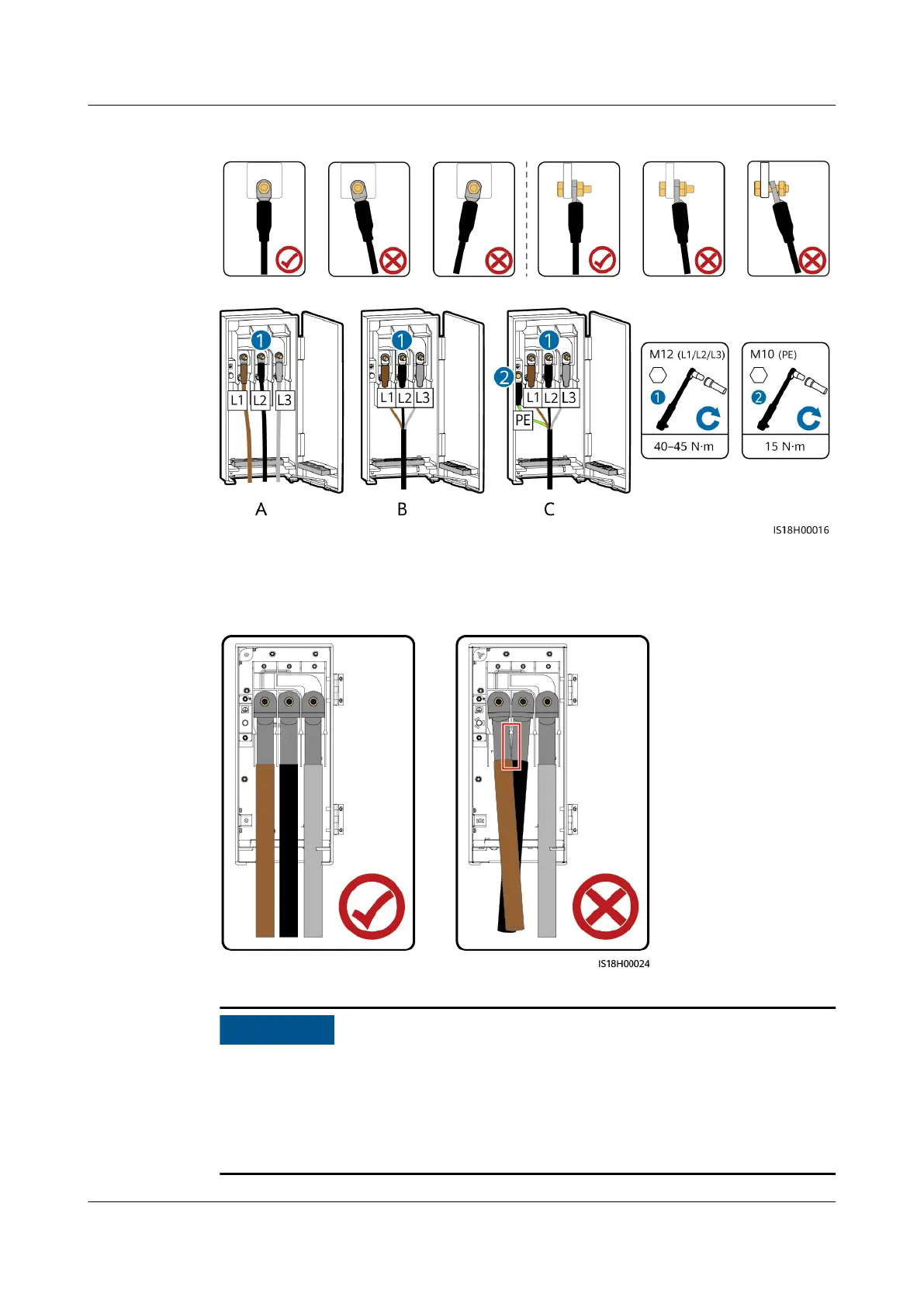

Figure 5-6 Cable connection 1
(A) Single-core cables (B) Three-core cable (C) Four-core cable
Figure 5-7 Cable connection 2
● Reserve sucient slack for the PE cable to ensure that the last cable bearing
the force is the PE cable when the AC output power cable is subject to a pulling
force due to force majeure.
● After cables are connected, prevent them from contacting the inter-phase
bae plates.
SUN2000-(250KTL, 280KTL, 300KTL, 330KTL) Series
User Manual 5 Electrical Connections
Issue 07 (2023-06-30) Copyright © Huawei Technologies Co., Ltd. 49
