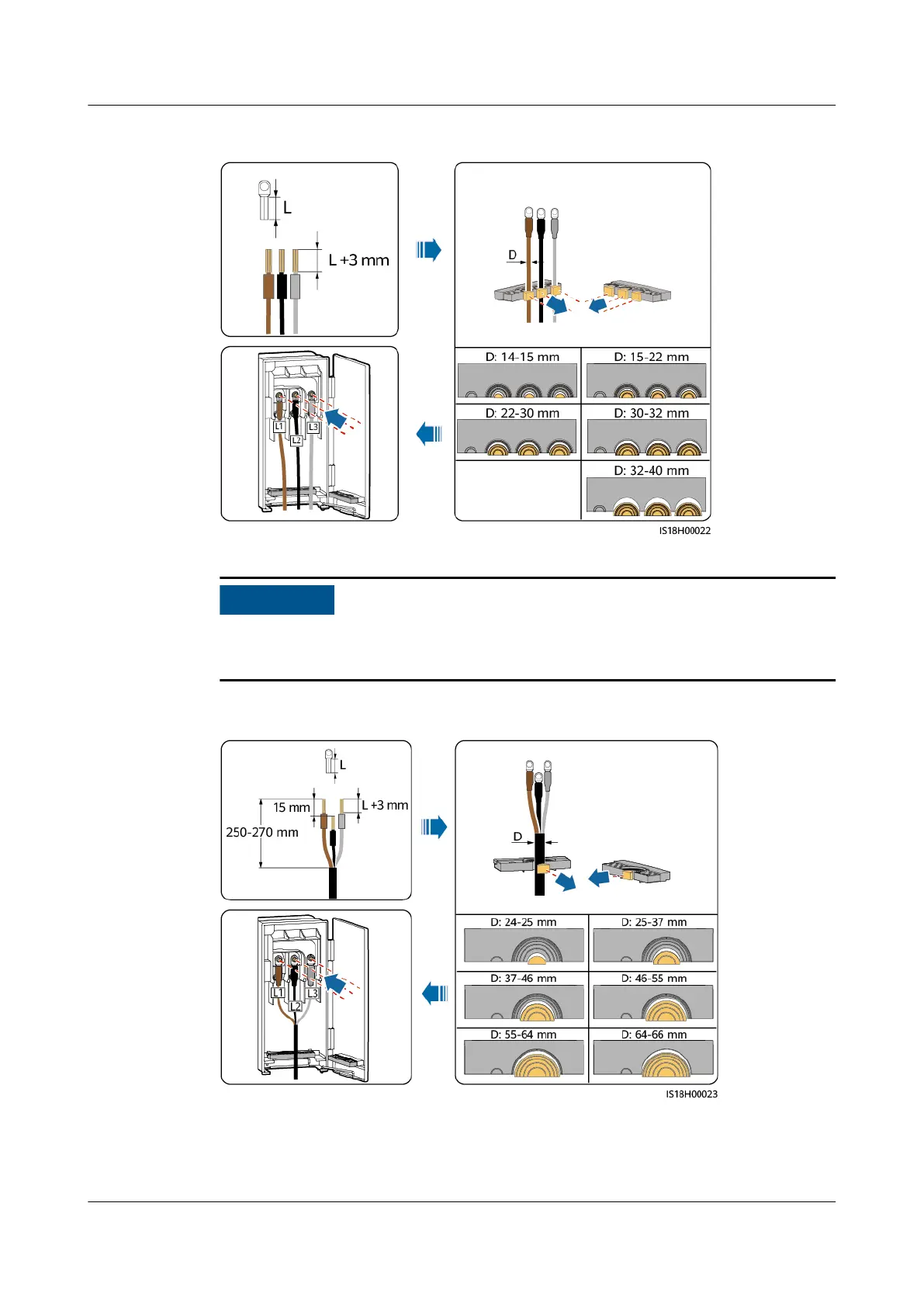

Figure 5-8 Single-core cable connection
If a multi-core cable is used, it is recommended that the stripping length of the L2
wire be 15 mm shorter than those of the L1 and L3 wires.
Figure 5-9 Multi-core cable connection (using a three-core cable as an example)
Step 3 If the system is congured with a tracking system, connect the power cable of the
tracking system.
