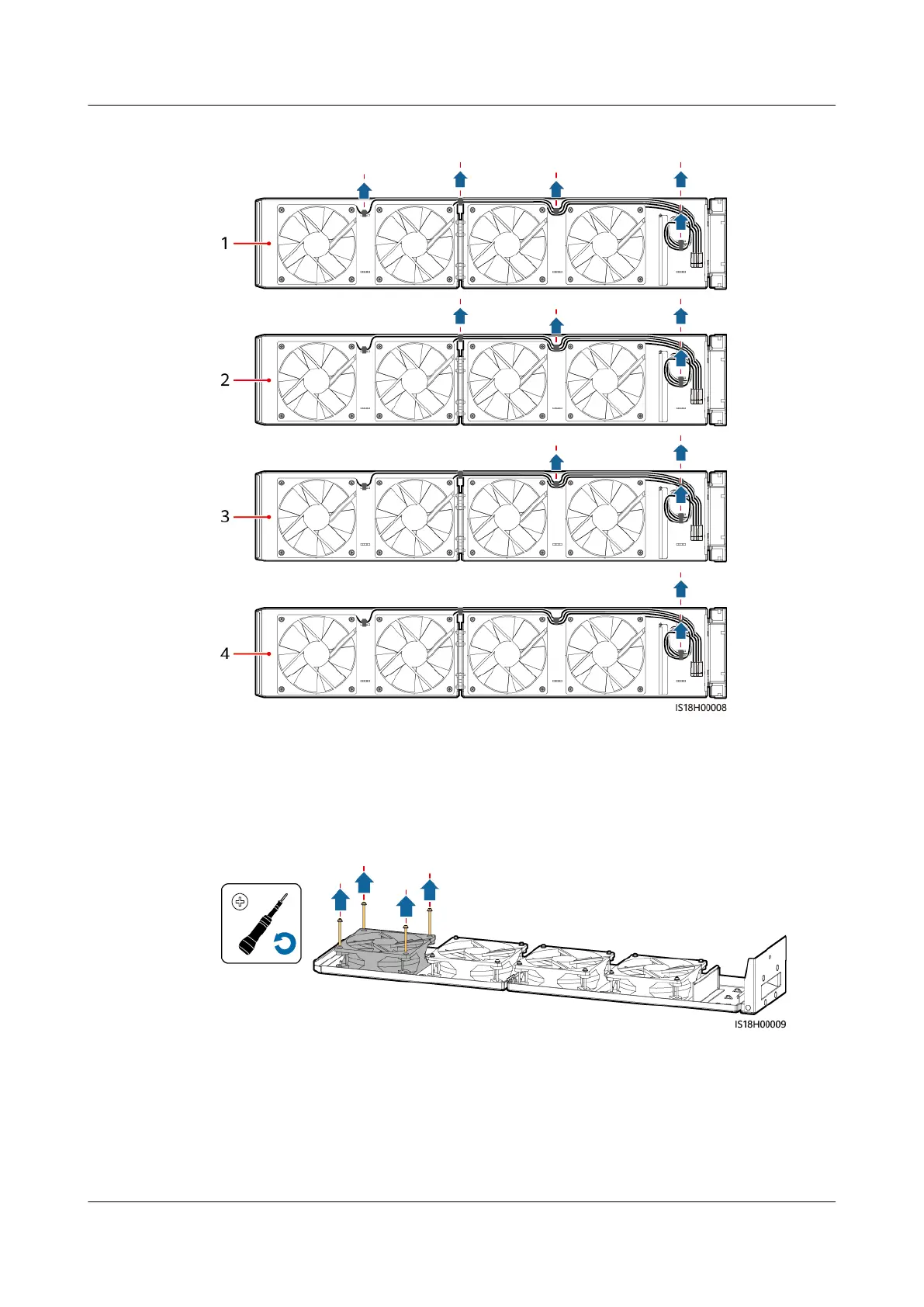

Figure 8-4 Removing cable ties
(1) Remove the cable ties from FAN 1. (2) Remove the cable ties from FAN 2.
(3) Remove the cable ties from FAN 3. (4) Remove the cable ties from FAN 4.
Step 3 Remove the faulty fan.
Figure 8-5 Removing a fan (using FAN 1 as an example)
Step 4 Install a new fan.
SUN2000-(250KTL, 280KTL, 300KTL, 330KTL) Series
User Manual 8 System Maintenance
Issue 07 (2023-06-30) Copyright © Huawei Technologies Co., Ltd. 79
