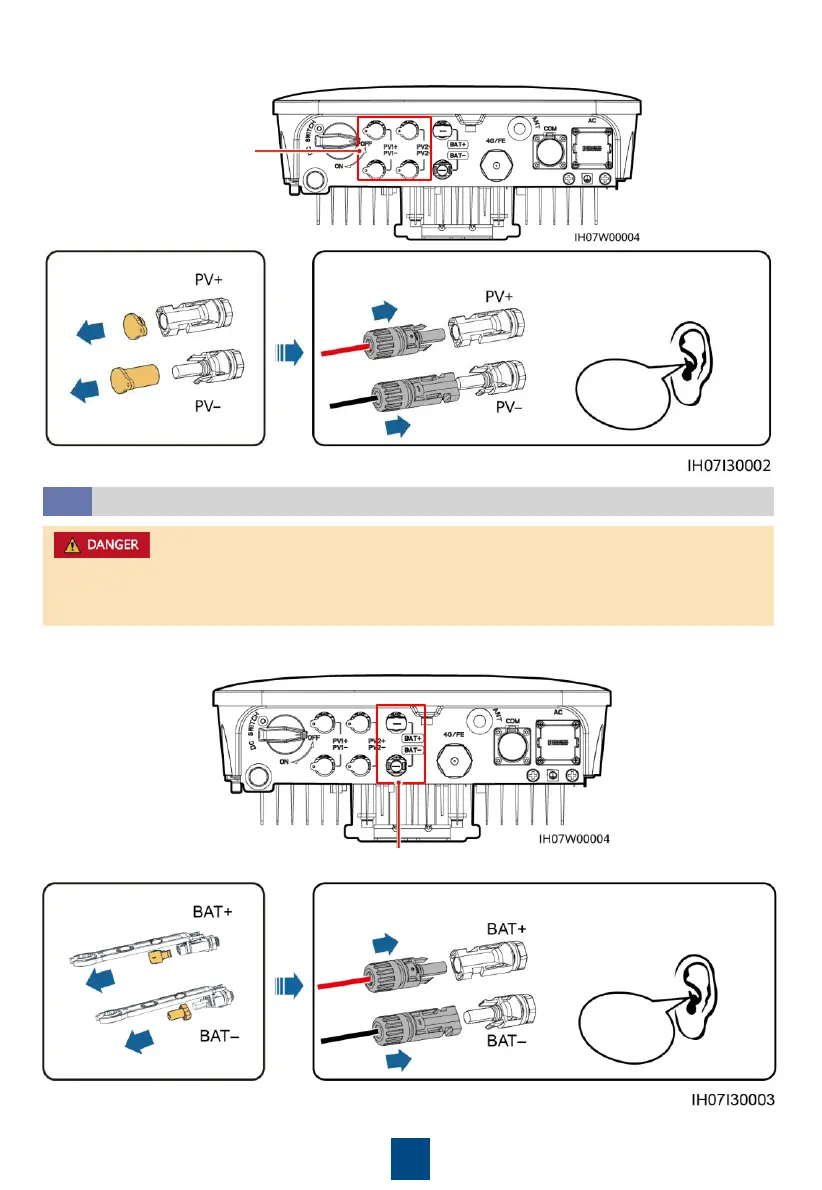

DC input terminals
Click
Pull the DC input power
cable back to ensure that
it is connected securely.
2. Connect DC input power cables.
(Optional) Installing Battery Cables
3.6
Properly keep the
watertight caps.
Pull the battery cable
back to ensure that it is
connected securely.
Battery terminals (BAT+/BAT–)
Assemble the positive and negative connectors by following the instructions in section 3.5
"Installing DC Input Power Cables."
•
Use insulated tools when connecting cables.
•
Connect battery cables with correct polarity. If battery cables are reversely connected, the
solar inverter may be damaged.
Click
To Next Page
