Huawei UPS2000-G-20KRTL - Page 2

1 2 3 4 5 6 7
8
9

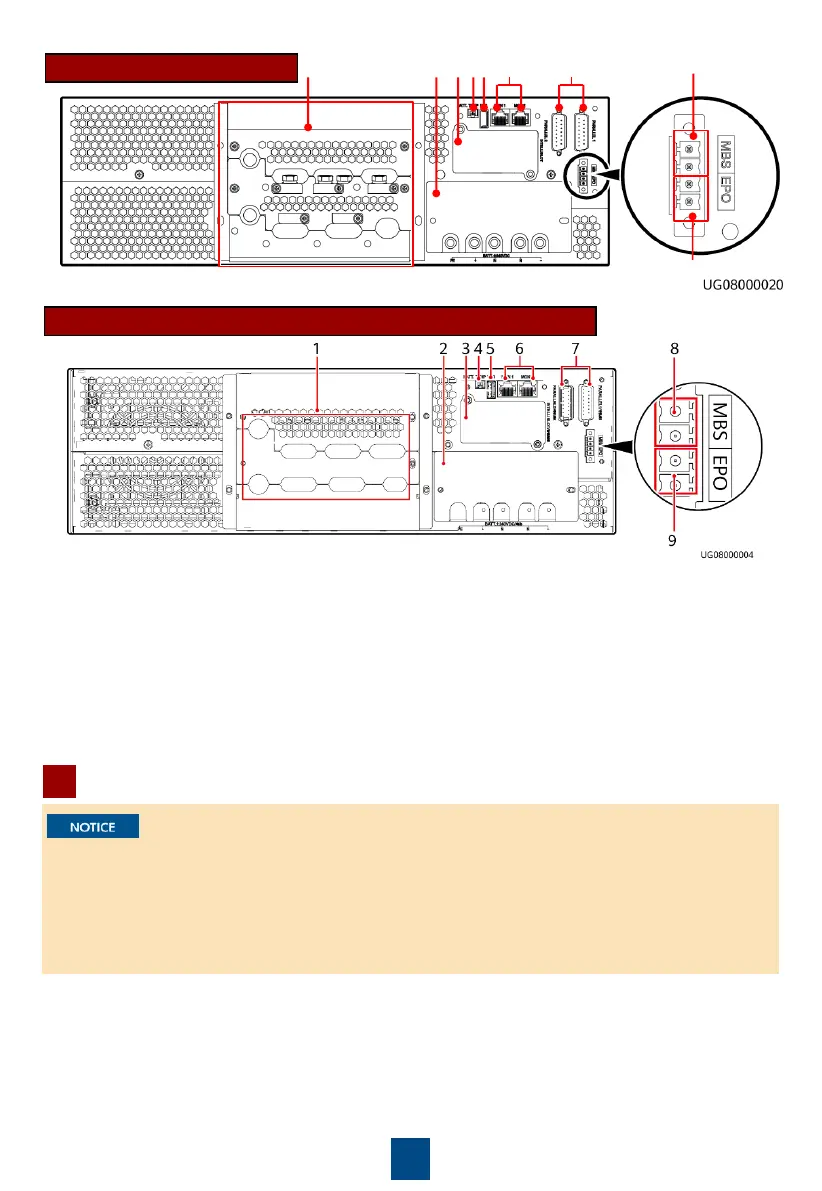

Rear View (15 kVA/20 kVA)
2
Rear View (UPS2000-G-15KRTL-01/UPS2000-G-20KRTL-01)
(1) Cover for AC input
and AC output
wiring terminals
(2) Battery terminal
cover
(3) Cover for the
optional card slot
(4) Battery temperature
sensor port
(5) USB port (protected
by a security
mechanism)
(6) CAN
communications
ports
(7) Parallel ports
(8) Maintenance bypass
port
(9)
EPO port
1. Carefully read the UPS2000-G-(6 kVA–20 kVA) User Manual prior to installation to get familiar
with product information and safety precautions.
2. Use insulated tools during installation.
3. Only engineers certified by the manufacturer or its agent are allowed to install, commission, and
maintain the UPS. Otherwise, personal injury or equipment damage may occur, and the resulting
UPS faults are beyond the warranty scope of Huawei.
Installing a Single UPS
