Expected
backup
time
≤ 0.1CA 0.1 CA to
0.5 CA
0.5 CA to
1 CA
1 CA to 3
CA
> 3CA
EOD
threshold
(V/cell)
1.75 1.67 1.60 1.60 1.60
Table 4-33 Balanced mode EOD setting values
Expected
backup
time
≤ 0.1CA 0.1 CA to
0.5 CA
0.5 CA to
1 CA
1 CA to 3
CA
> 3CA
Low
voltage
warning
threshold
(V/cell)
1.90 1.90 1.90 1.90 1.90
EOD
threshold
(V/cell)
1.85 1.85 1.83 1.75 1.67
Table 4-34 Balanced mode EOD setting values
Expected
backup
time
≤ 0.1CA 0.1 CA to
0.5 CA
0.5 CA to
1 CA
1 CA to 3
CA
> 3CA
Low
voltage
warning
threshold
(V/cell)
1.85 1.85 1.85 1.85 1.85
EOD
threshold
(V/cell)
1.80 1.75 1.70 1.67 1.65
● Shallow Discharge screen

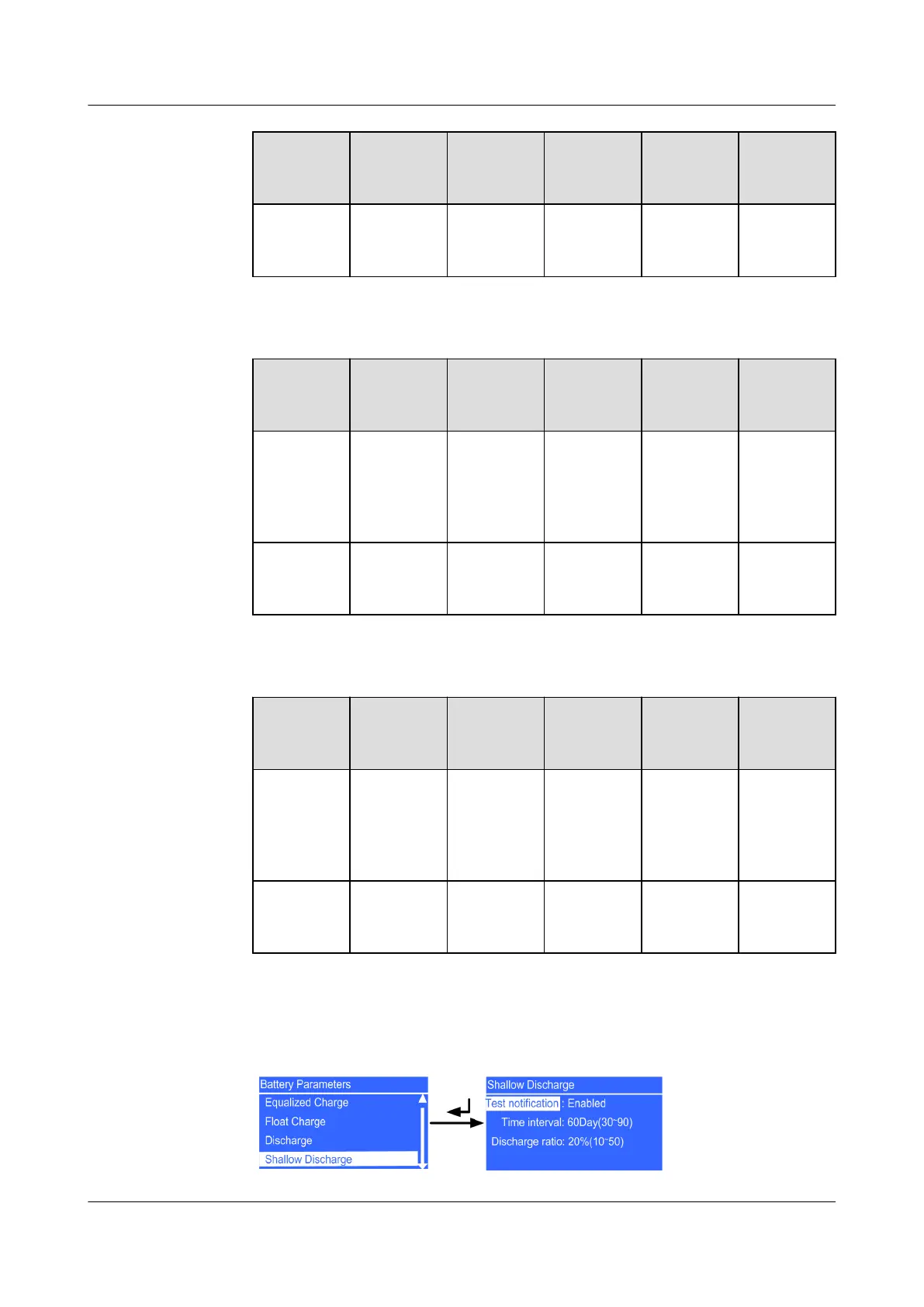

Figure 4-42 Shallow Discharge screen (UPS2000-G-15KRTL-01/UPS2000-
G-20KRTL-01)
UPS2000-G- (6 kVA-20 kVA)
User Manual 4 Control Panel
Issue 18 (2021-07-16) Copyright © Huawei Technologies Co., Ltd. 80
