5

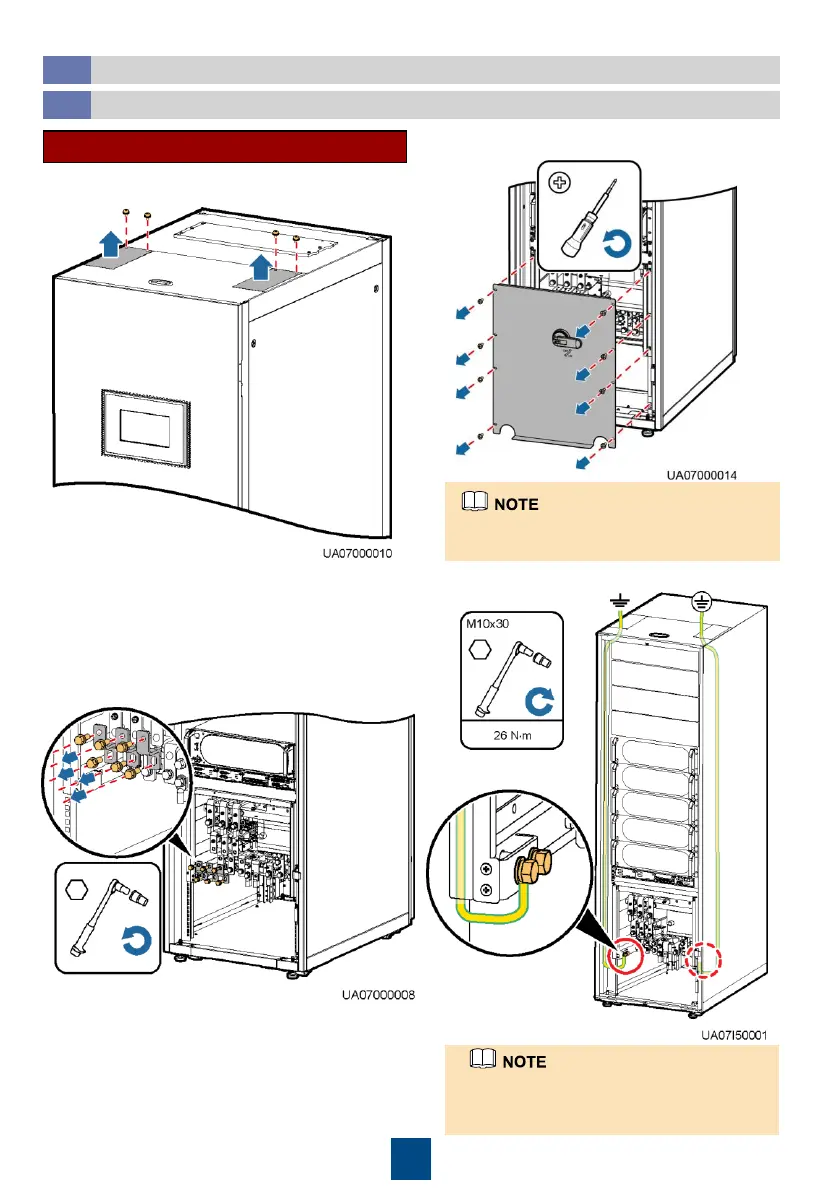

2. Remove the cover from the power
distribution subrack.
3. Remove the copper bars between mains
input terminals and bypass input terminals.
(If the mains input and bypass input share
a power source, skip this step.)
The cover can be opened only if the
maintenance bypass switch is OFF.
4. Connect the ground cable to the UPS.
In the preceding figure, circled wiring
terminals are primary ones and must
connect to the ground cable.
1. Remove the small covers of the cabinet top.
Connecting Cables
3.2
Connecting Cables to the UPS5000-E-200K-SM
Scenario 1: Routing Cables from the Top
