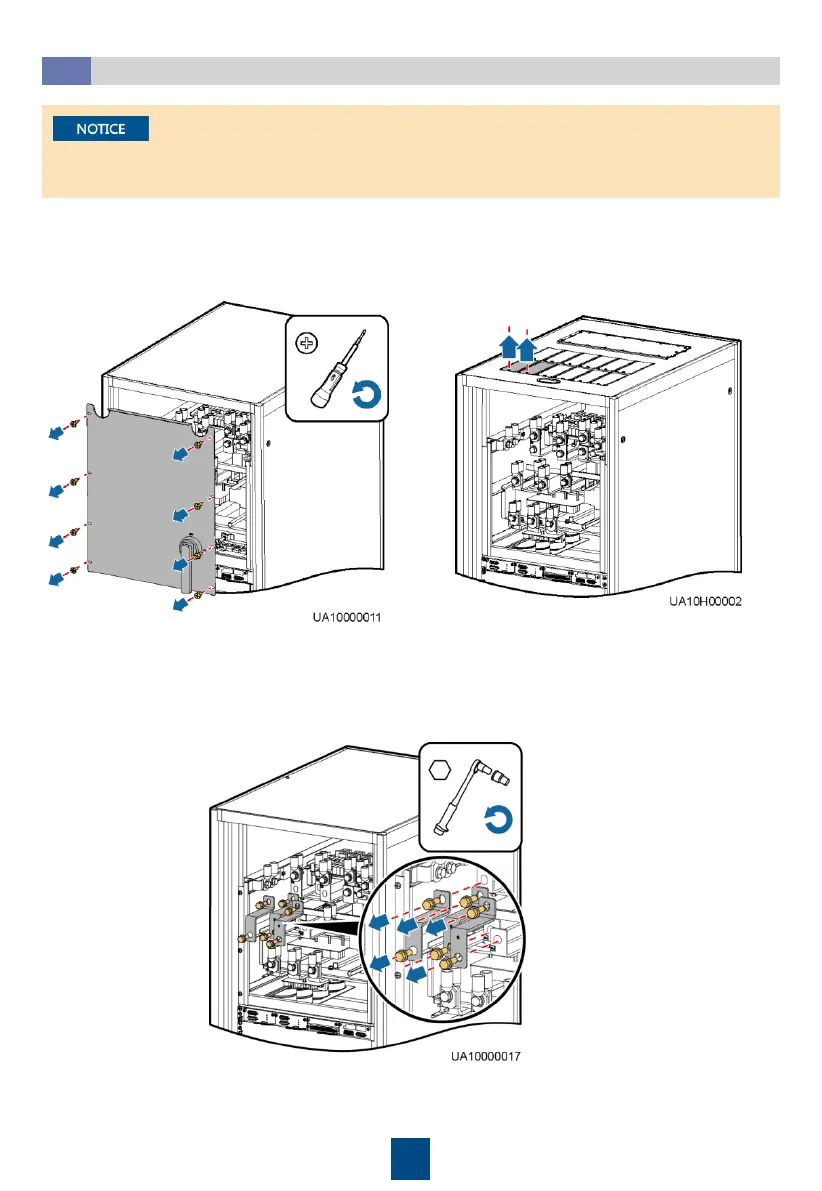

1. Remove the cover from the power
distribution subrack.
3. Remove the copper bars between mains input terminals and bypass input terminals.
2. Remove a certain number of small covers
from the top of the cabinet based on site
conditions.
1. The basic rule is to route cables from inside out and from the bottom up.
2. If holes are drilled for routing cables, attach grommet strips on the hole edges to protect cables.
Connecting Cables to the UPS5000-E-300K-SMT
3.3
To Next Page
