7

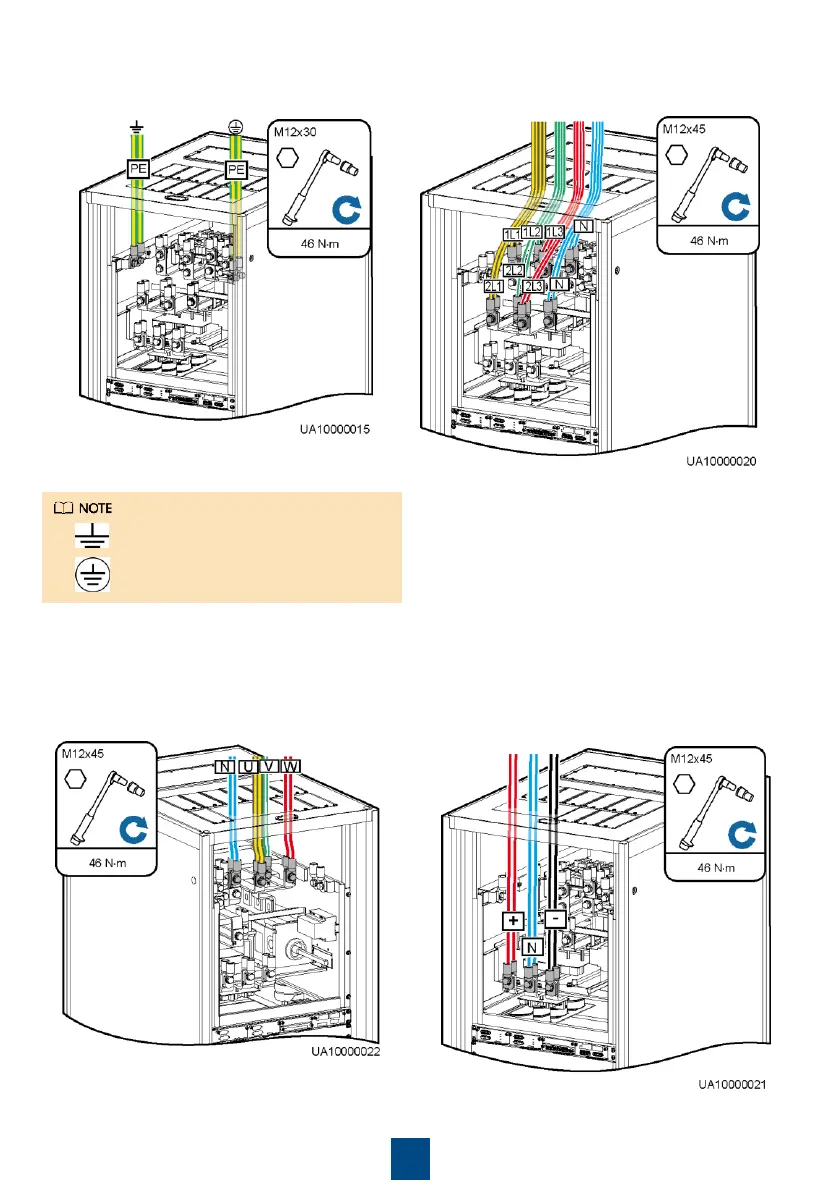

4. Connect ground cables to the UPS.
• : Internal equipotential connection
• : Protection ground
5. Connect mains and bypass input power cables.
6. Connect output power cables. 7. Connect battery cables.
