Huawei WiFi Mesh 3 User Manual

2
POWER
LA N
ADSL
RESET
LAN
WAN
POWER
Step 2: Connect the cables

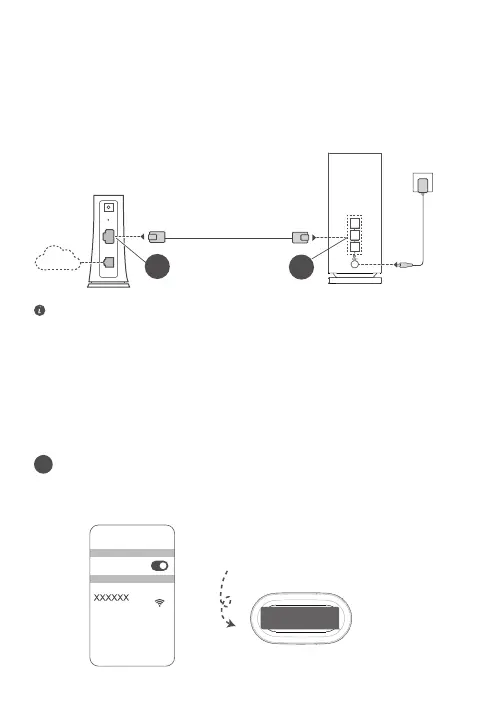

Take out a router from HUAWEI WiFi Mesh 3, connect it to the
optical/broadband/cable modem using a network cable, then
connect it to a power supply.
Optical/broadband/cable modem
(from your broadband provider)
Router
Insert the cable to the WAN/LAN
auto-adaptation port on the router
Internet
• If the indicator is steady red, this indicates that the router is not
connected to the Internet. Please refer to "Step 3: Set up the router".
• For routers that support WAN/LAN auto-adaptation, the network ports
are WAN/LAN combo ports. You can also specify a xed WAN port
on the router's web-based management page.
Step 3: Set up the router
Method 1: Congure the router on the app
Connect your mobile phone to the Wi-Fi
®
of the router
connected to the modem (no password required). Check for
the Wi-Fi name on the bottom of the router.
1
WiFi
WiFi
Connected
Wi-Fi Name: XXXXXX

Huawei WiFi Mesh 3 Specifications

General

Antenna type	Internal
Product type	Mesh system
Product color	White
LED indicators	Yes
Maximum coverage	600 m²
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Flash memory	128 MB
Internal memory	256 MB
Number of products included	3 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Security algorithms	WPA3
Networking standards	IEEE 802.11k, IEEE 802.11r, IEEE 802.11v
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
Ethernet LAN (RJ-45) ports	3
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Power consumption (typical)	12 W

Weight and Dimensions

Depth	107 mm
Width	70 mm
Height	174 mm
Weight	413 g
