9.3.1 Reception Channel

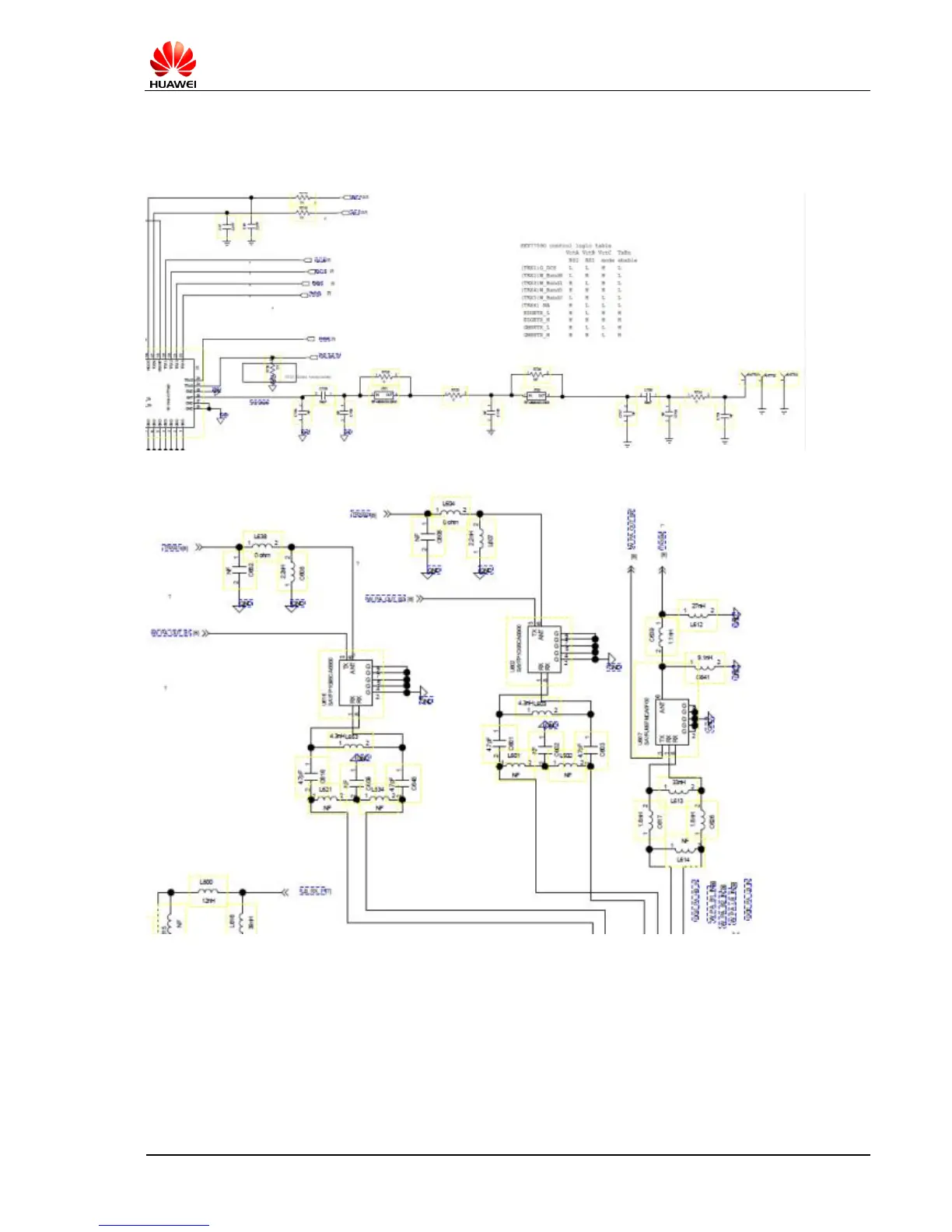

 Circuit Principle Diagram
 Circuit analysis:
The receiving part of the circuit includes an antenna switch (integrated in the RF power
amplifier inside) U1, U616, U607, transceiver chip (U600) MT6166, matching circuit.
The SKY77590 control logic:
