Hubner AMSH 40 K-1312 User Manual

Hollow Shaft Absolute Encoder AMSH40
ASSH40
AMSH_ASSH_MANUAL-en_R2(2022-01-19)ID78121.docx
15

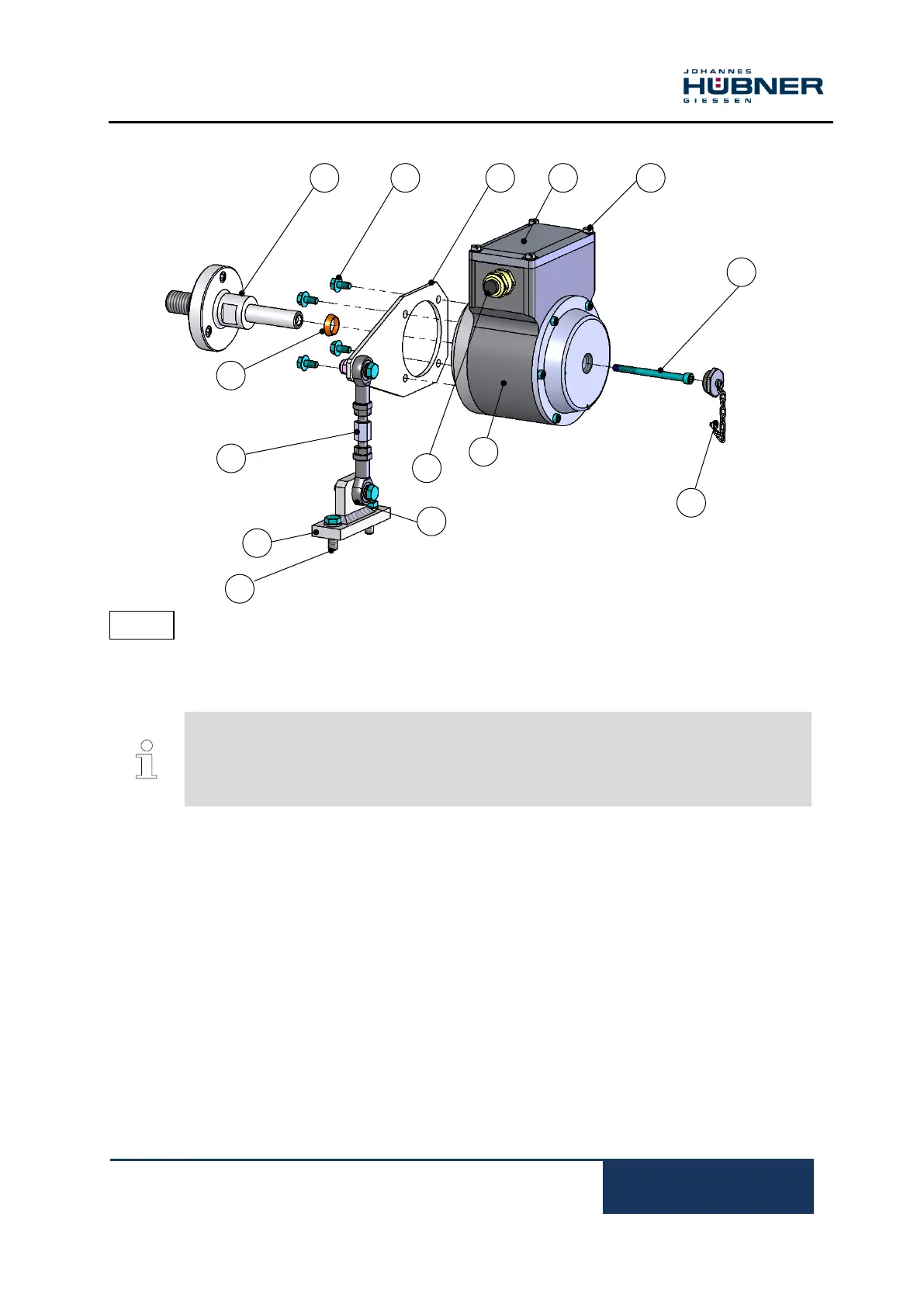

5.6 Mounting hollow shaft type absolute encoder with locking element
1. Mount adapter shaft (1) and align using dial gauge.
NOTES!
The maximum radial run-out of the adapter shaft is 0.05 mm.
If necessary, use the ball thrust adjustment screw to align the adapter shaft. Secure ball
thrust screws with Loctite
®
243. Remove unused ball thrust screws or secure with Loctite
®
243. Max. tightening torque for M12 approx. 25 Nm, for M16 approx. 63 Nm.
7
2
3
11
6
12
9
13
5
4
8
10
1
14
Figure.2
:
