Automatic Clutch Control
Governor
(Optional equipment)

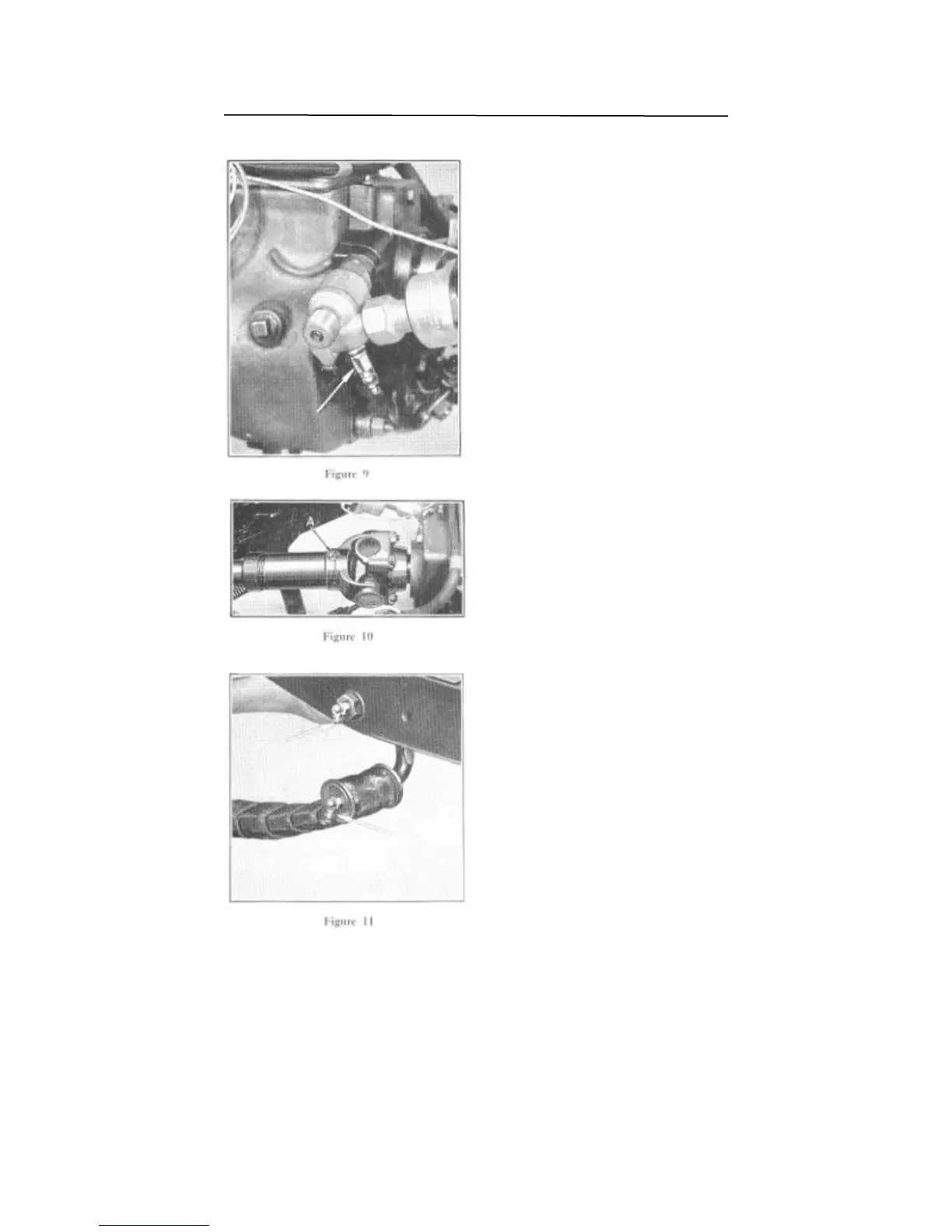

The automatic clutch control governor
adapter, Figure 9, located on the left side
at the rear of the transmission, is fitted
with a metered lubrication fitting. This
fitting should be lubricated every 1,000
miles with viscous chassis lubricant.
Propeller Shaft Front Joint
The front universal joint spline shaft
should be lubricated every 1,000 miles
with viscous chassis grease. To maintain
proper balance, a plug is fitted into the
universal joint (A), Figure 10, and this
should be removed and a lubrication fit-
ting installed to perform the operation. Be
sure the fitting is removed and the regular
plug reinstalled. Avoid over-lubricating
to prevent damage to the oil seal.
Spring Shackles and Pivot
Bolts
Fourteen lubrication fittings provide for
lubrication of front and rear spring shack-
les and rear spring front pivot bolts.
These fittings should be lubricated with
viscous chassis lubricant every 1,000
miles. See lubrication chart for location
of fittings. Also see Figure 11.
O W N E R' S M A N U A L 17
