Huffy BMW - Assembly: Drive Motor and Wheels; Front Wheel Frame Assembly; Rear Wheel & Axle Installation; Steering Rod Installation

8
Installing the Drive Motor and Wheels
Assembly
Installation of J - Steering Rod
Installation of the front-wheel frame
connecting-rod and wheel
5
12
10
11
7
13
A
7
20
20
17
17
5
6
18
19
FRONT
REAR
With the vehicle upside down, insert the long end of the
J-shaped Steering Rod (13) into the body opening so that
short end ts into the axle slot as shown and the xed
washer (A) sits against the car body.
a
b
c
d
d
e

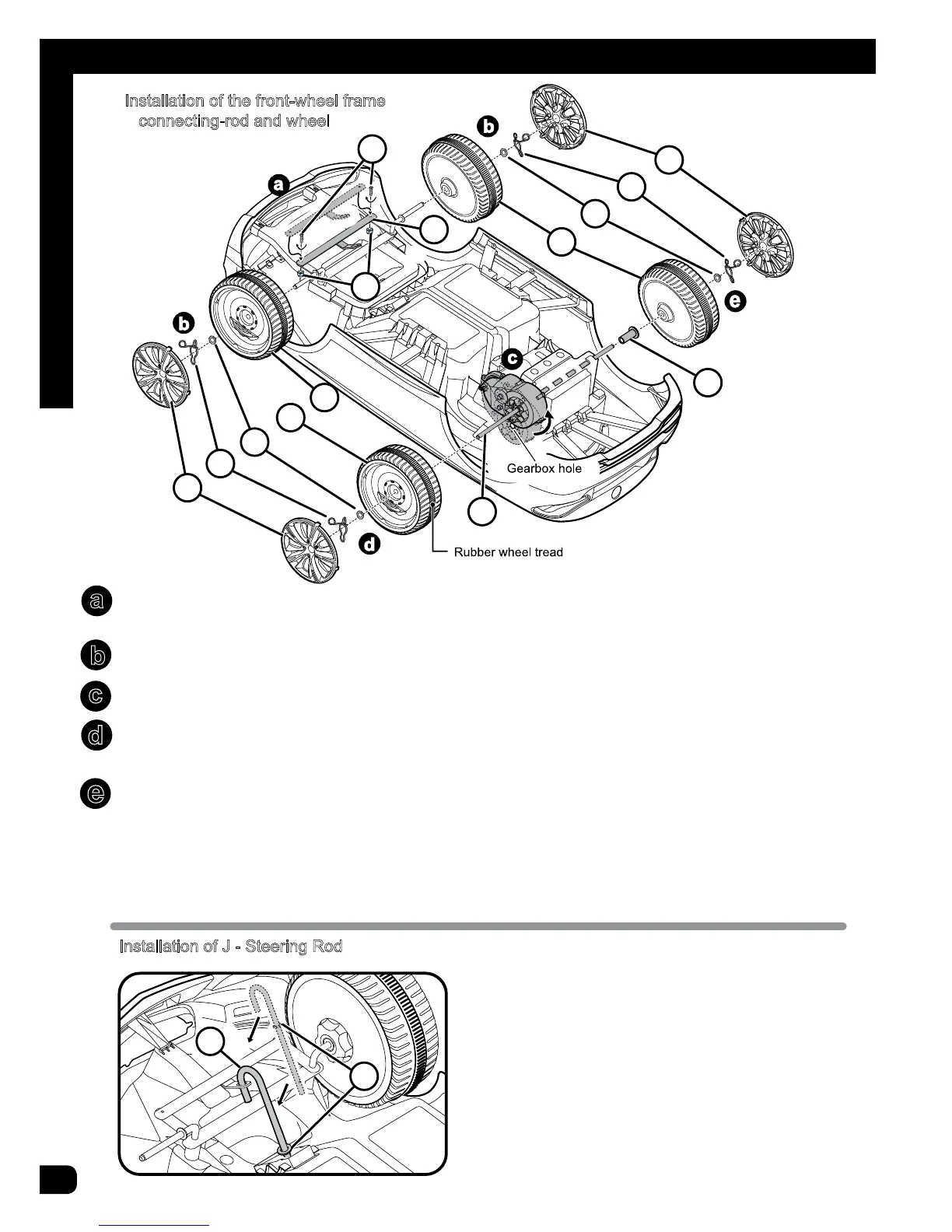

• Install the front-wheel frame connecting-rod (10) as shown (may be pre-installed), and install screw (11) and
locknut (12). Tighten securely, then loosen just enough so you can turn screw/nut by hand. Screw threads
must still be fully engaged into locknut.
• Insert the car wheel (5), washer (7) into the front wheel axle as shown. Insert the buckle spring (20) into the
slot of wheel axle and snap wheel cover (7) in place. Repeat for opposite side.
• Rotate the motor gearbox upward along with the direction of arrow, until the motor gearbox is aimed at car
body axle hole.
• Insert the rear wheel axle (18) as shown. Insert driving wheel (part 6, with rubber wheel tread) and washer
(17) into the rear wheel axle as shown. Insert the buckle spring (20) into the slot of wheel axle and snap
wheel cover (7) in place.
• Insert the rear wheel spacer (19), wheel (5), washer (17) onto the front wheel axle as shown. Insert the
buckle spring (20) into the slot of wheel axle and snap wheel cover (7) in place.
