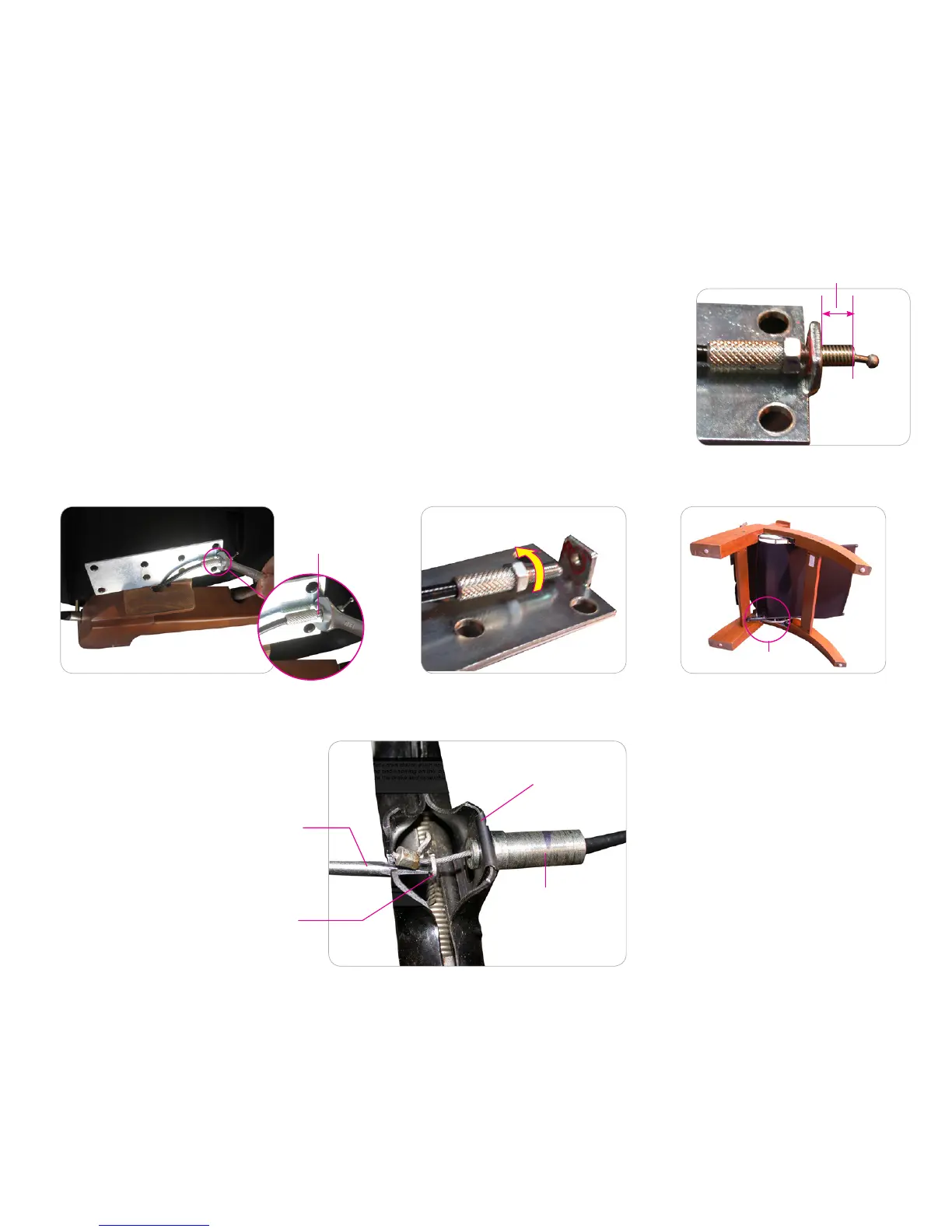

8. Locate the nut that secures the cable to the mounting plate, then measure the amount of threaded cable visible on the side of
the bracket opposite the nut. You will need this measurement when installing the new cable, to adjust the cable tension properly (Fig.6).
9. Using a 10mm open wrench, loosen the nut (Fig.7).
10. Using a pair of pliers, unscrew the bolt to remove it from the bracket, then remove the nut (Fig.8).
11. Gently tip the chair onto its left-hand, then locate the brake on the underside of the chair (Fig.9).
12. Using a small flat-head screwdriver, lift and remove the cable retaining clip and cable from the brake. TIP: Note the positioning
of the retaining clip and cable, for reinstallation (Fig.10).
13. From the rear of the chair, gently pull the cable through and remove it from the chair.
(Fig.6)
Measure
Loosen the nut
(Fig.7) (Fig.8) (Fig.9)
Retaining clip
Brake cable
Brake tab
Small flat-head screwdriver
(Fig.10)
Brake
