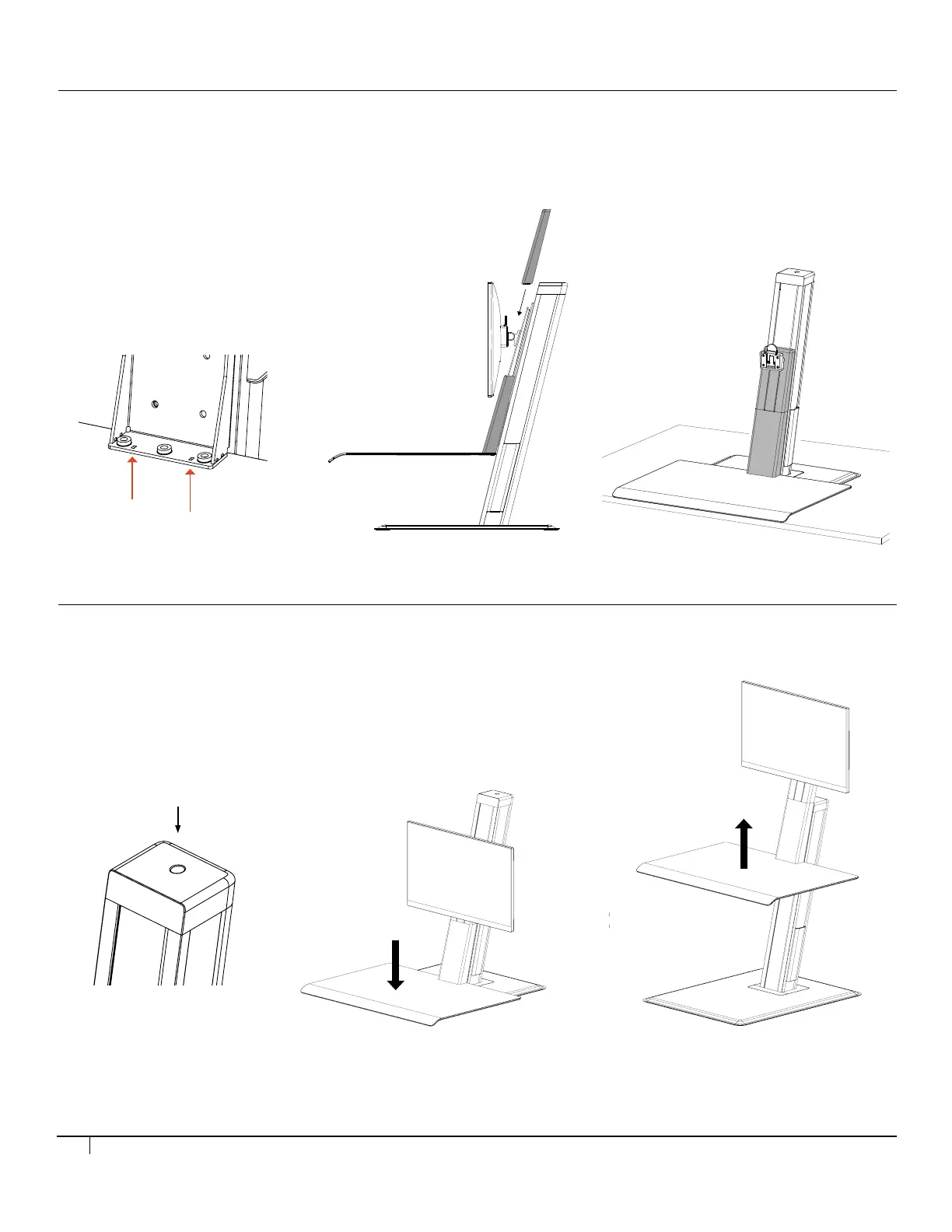

Step 9
Adjust the counter balance system.
Using the 6mm hex tool, rotate the screw located on the top clockwise
until forces pushing the keyboard platform up and down becomes about
equal. Clockwise to increase upward force and counter clockwise to lower
upward force.
=
Step 8
Attach the plastic covers. Make sure the tabs on the lower plastic cover
slides into the slot in the bracket. Upper cover slides in from the top
behind the monitor mount bracket.
Step 8
Attach the plastic covers. Make sure the tabs on the lower plastic cover
slides into the slot in the bracket. Upper cover slides in from the top
behind the monitor mount bracket.
STEP 8
Attach the plastic covers
• Make sure the tabs on the lower plastic cover slides
into the slot in the bracket.
• The upper cover slides in from the top behind the monitor mount bracket.
STEP 9
Adjust the counter balance system
• Using the 6mm hex tool, rotate the screw located on the top clockwise
until it fluidly adjusts when raising and lowering.
• Turn clockwise to increase upward force and counter clockwise to lower upward force.
