Lubrication
260
Inspection, care and maintenance
7
Ramps

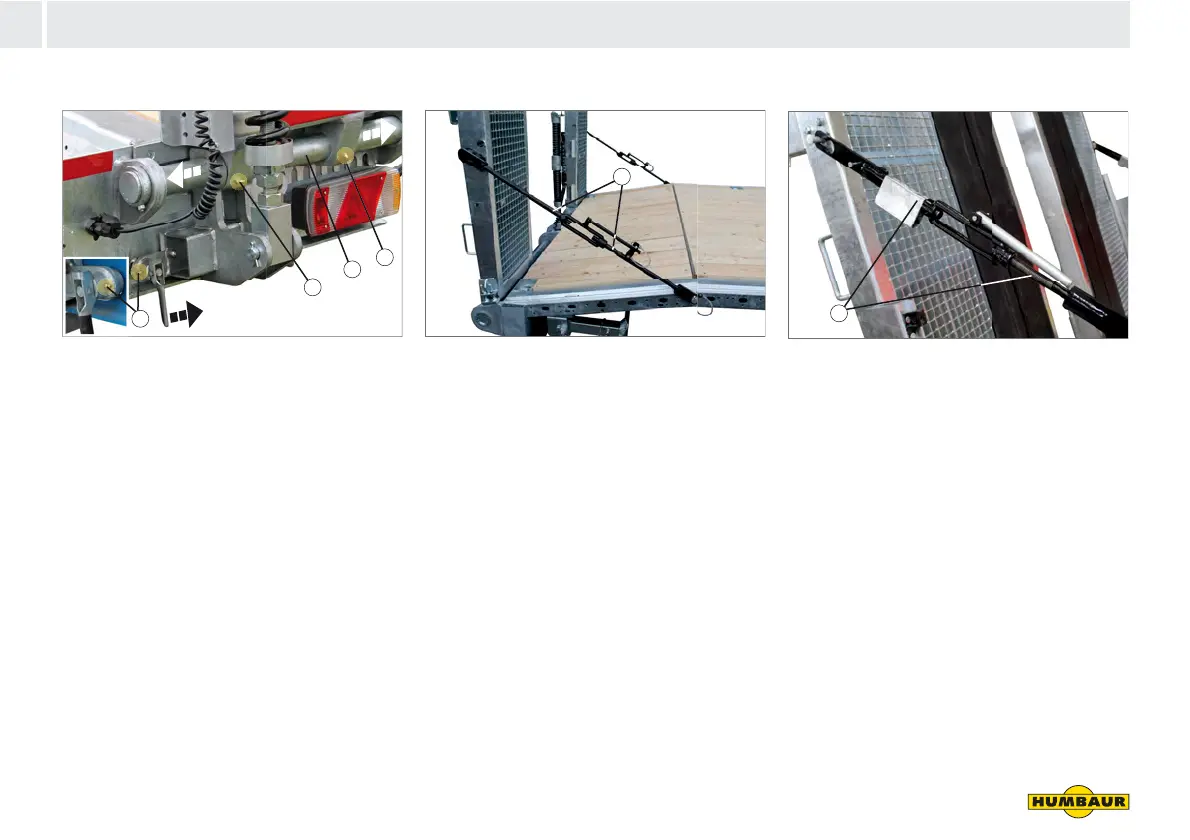

Fig. 18 Lubricating ramp bearing
1 Lubrication nipple
2 Bolt bearing points
3 Lubrication nipple
4 Lubrication nipple, lever
Clean the lubrication nipple and bolt
with a clean cloth.
Lubricate the bearing on the
lubrication nipple (Fig. 18/1,3,4) with a
grease gun until lubricant escapes.
Lubricate the bolt bearing points
(Fig. 18/2) with machine grease.
Move the ramps from side to side.
Raise and lower the ramps.
This distributes the grease.
Securing tensioner
Fig. 19 Lubricating securing tensioner 1
1 Threaded linkage
Fig. 20 Lubricating securing tensioner 2
1 Threaded linkage
Clean the threaded linkage with a
clean cloth.
Lubricate the threaded linkage
(Fig. 19/1 and Fig. 20/1) with machine
grease.
Tension and release the securing
tensioner several times.
This distributes the grease.
Clean the escaping/excess lubricant
with a cloth.
1
3
2
4
1
W - 017
