Operation: chassis
91
Electro-hydraulic system (option)
1
2
3
4
5
6
7
8
Electro-hydraulic unit

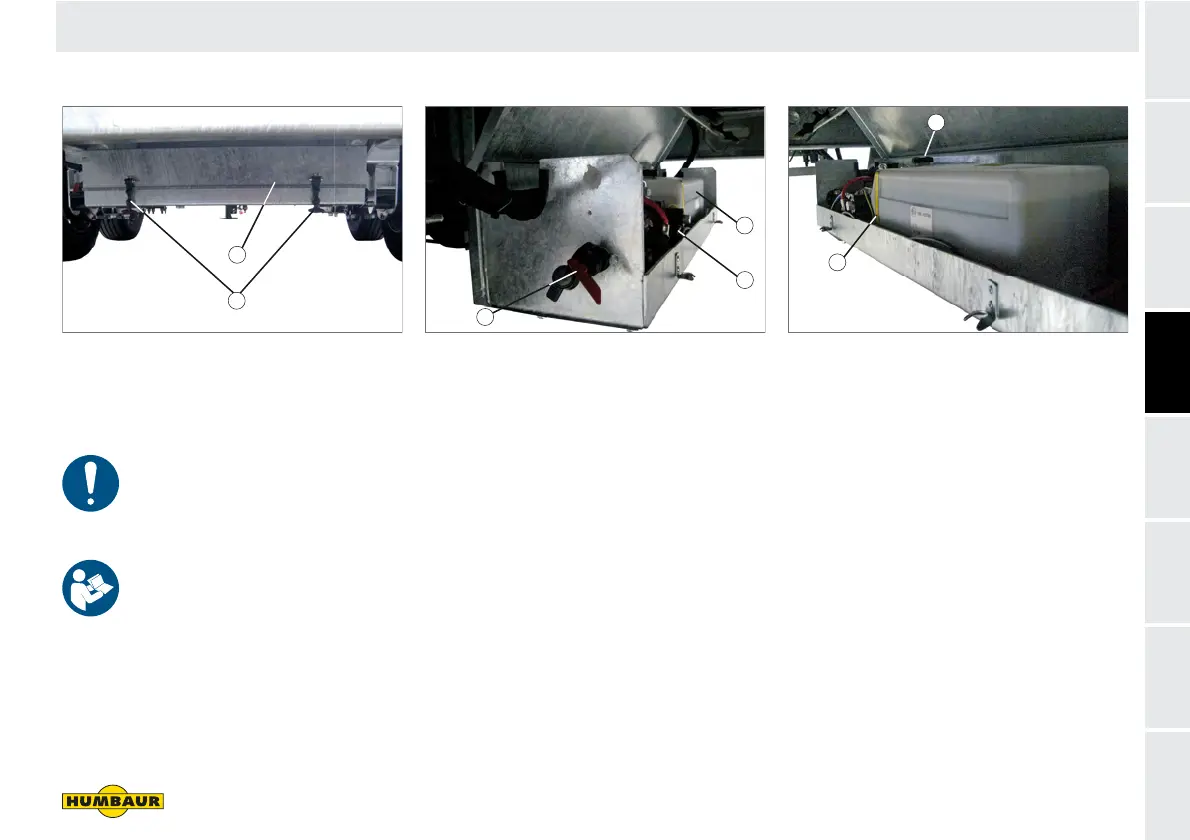

Fig. 34 Electro-hydraulic unit under chassis
1 Cover, closed
2 Locks
Maintenance/repair work on the
electro-hydraulic unit may only
be carried out by an approved
workshop!
Follow the safety instructions
when handling hydraulic fluid in
the chapter entitled
Maintenance, see page 264.
Fig. 35 Electro-hydraulic unit
1 main switch
2 Electric pump
3 Oil tank
Fig. 36 Checking oil fill quantity
1 Check bar for oil level (Min. / Max.)
2 Filler connection
The oil level must be regularly checked
(see Maintenance, page 264).
The oil level in the oil tank is indicated on
the check bar (Fig. 36/1).
The oil level must be between the Min.
and Max. limits.
F - 025
1
2
F - 023
1
2
3
F - 027
1
2
