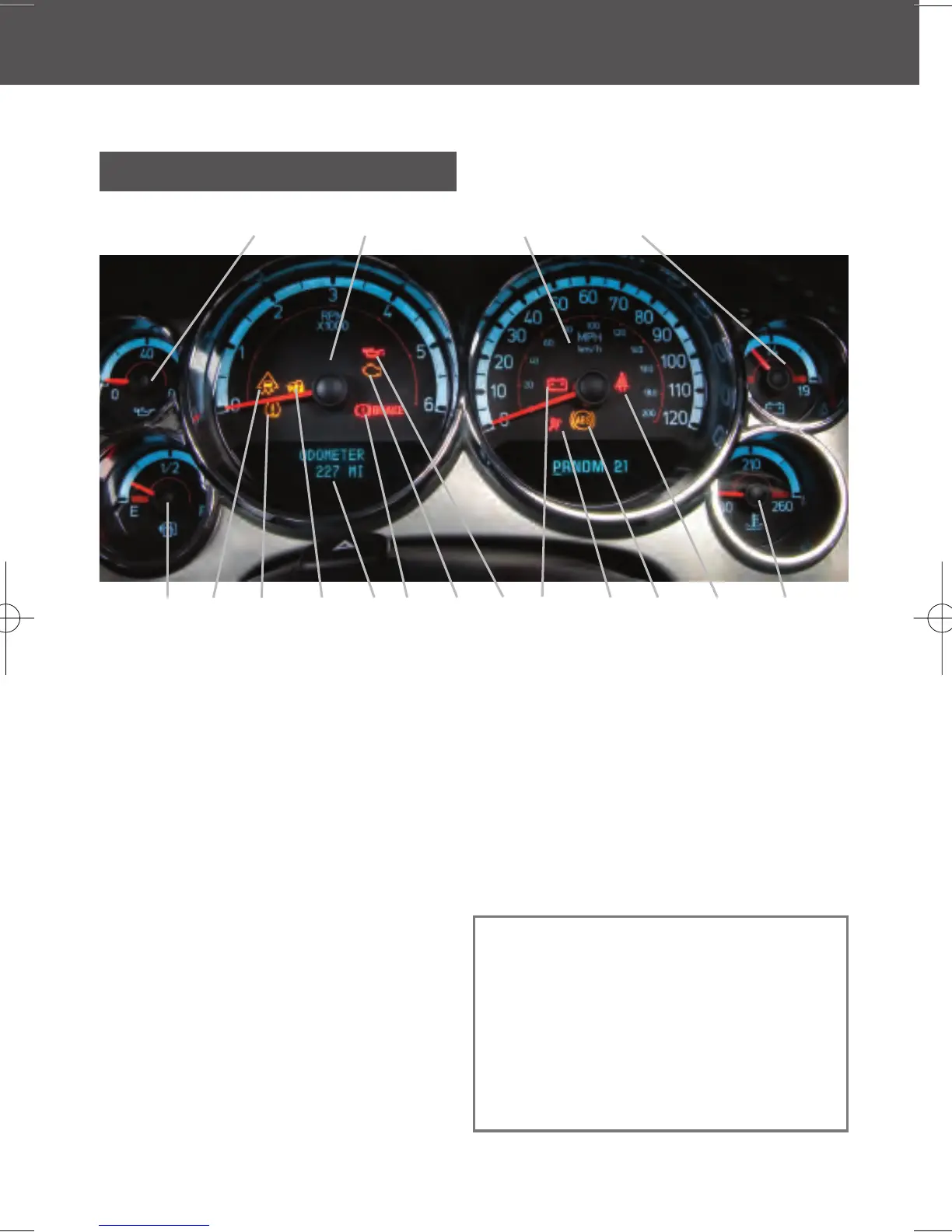

Your vehicle’s instrument panel is
equipped with this cluster or one very
similar to it. The instrument cluster
includes these key features:
A. Oil Pressure Gauge
B. Tachometer
C. Speedometer
D. Voltmeter*
E. Fuel Gauge
F. StabiliTrak Indicator Light
G. Tire Pressure Light
H. Security Light
I. Driver Information Center/Odometer
J. Brake System Warning Light
K. Malfunction Indicator Lamp
(Check Engine Light)
L. Oil Pressure Warning Light
M. Charging System Warning Light
N. Airbag Readiness Light
O. Antilock Brake System Warning Light
P. Safety Belt Reminder Light
Q. Engine Coolant Temperature Gauge
*The charging system is designed to regulate
voltage output to help improve fuel economy
and extend battery life. Normal system operation
readings may fluctuate based on vehicle operation,
including the number of electrical accessories being
operated and engine speed.
See Section 3 of your Owner Manual.
Note: The instrument cluster is designed
to let you know about many important
aspects of your vehicle’s operation. It is
important to read your Owner Manual and
become familiar with the information being
relayed to you by the lights, gauges and
indicators, as well as what action can be
taken to ensure safety and to prevent
damage.
Instrument Panel Cluster
DACB
E LF GIKJH OM P
N Q
