Hunter 42797-01 - Assembling the Blades

12
42797-01 • 11/13/08 • Hunter Fan Company
3 • Assembling tbe Blades

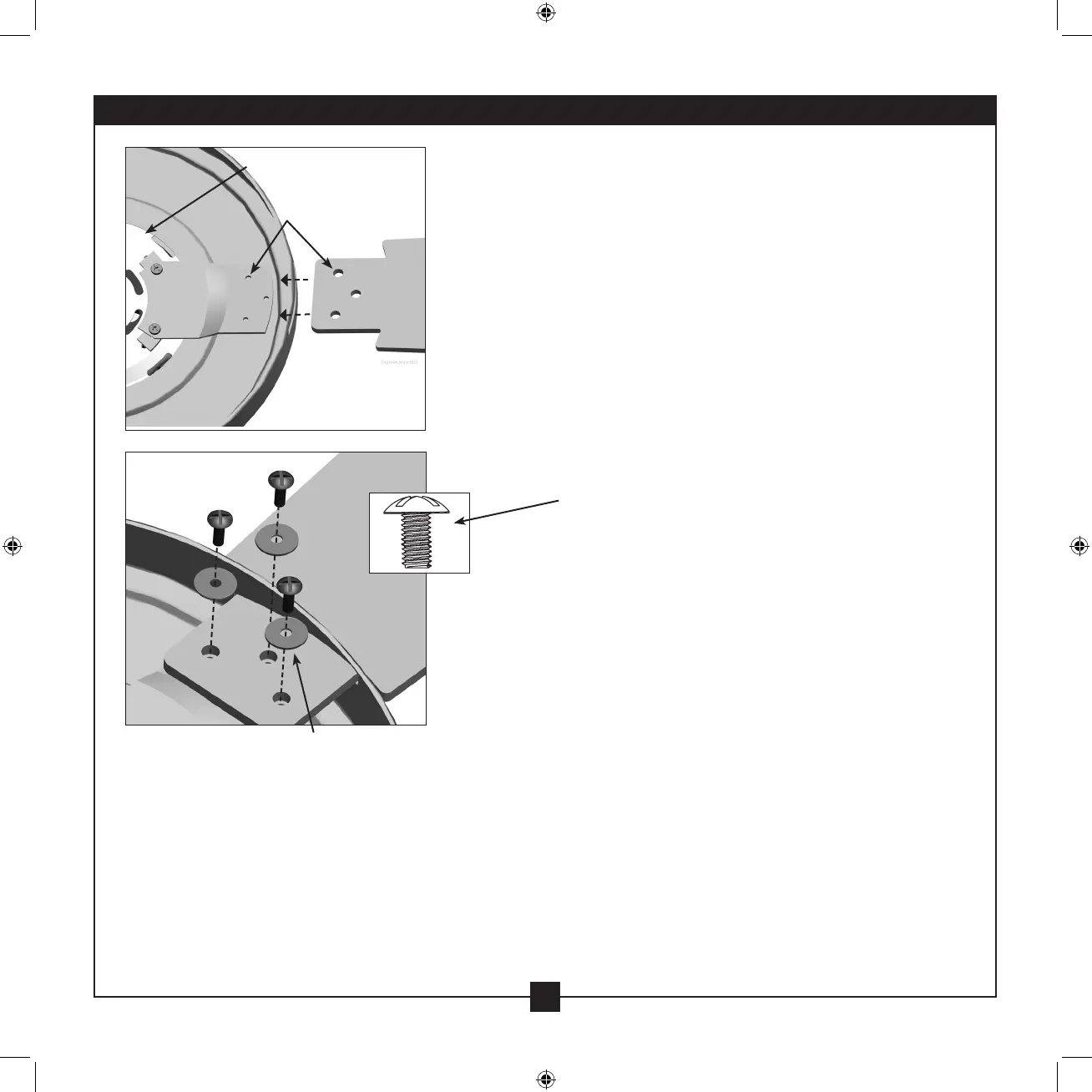

Step 8-1
Step 8-2
Holes
Fan Motor
8-1. Insert blade into slot. Align the holes on the blade with the holes
in the fan motor.
8-2. Slide at washers onto the shafts of the blade assembly screws.
8-3. Attach the blade to the motor using the blade assembly screws.
8-4. Repeat for each blade.
Blade Assembly
Screw
Flat Washer
8 • Assembling the Blades
3 • Assembling tbe Blades
