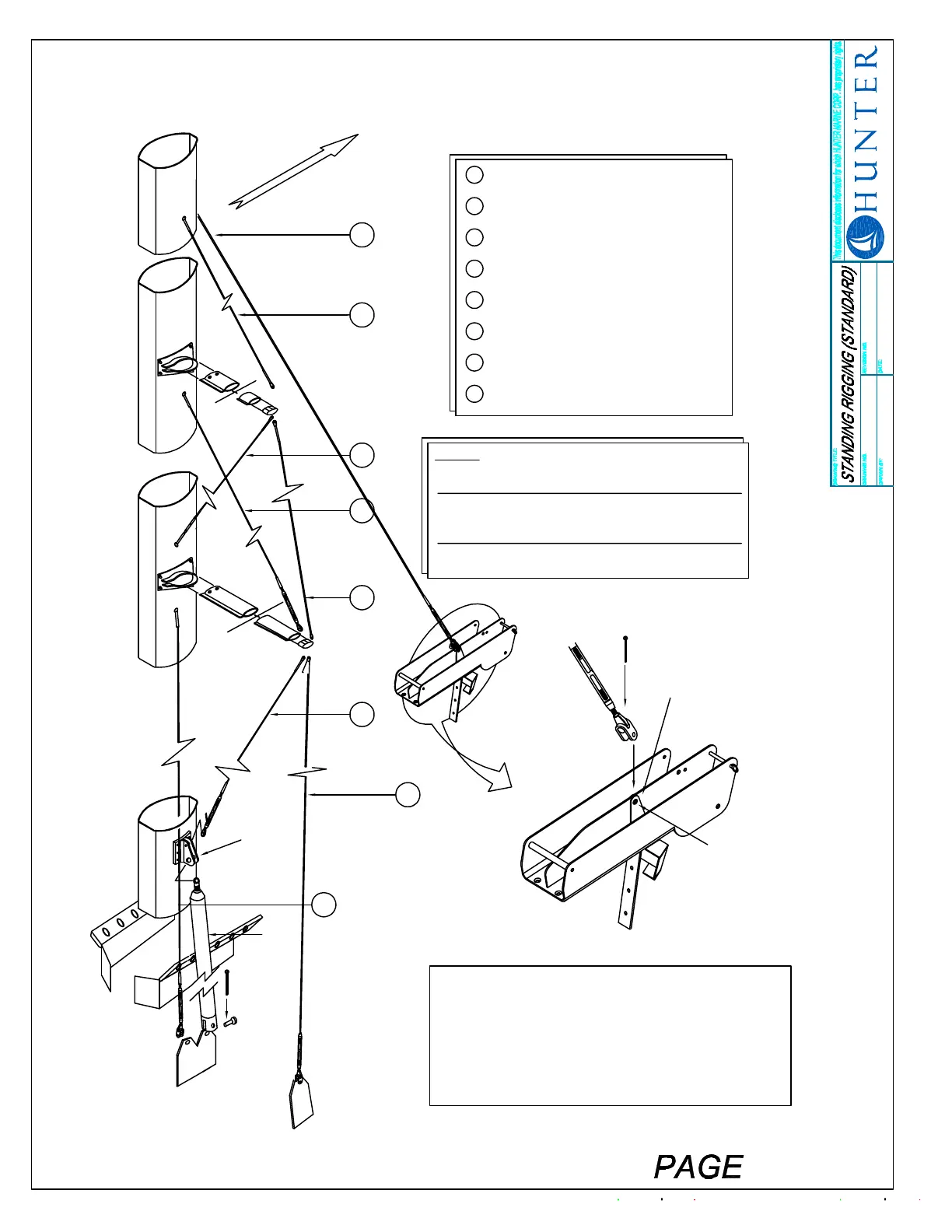

NOTES:
1. SEE PAGES 49A & B FOR FURTHER SPREADER
TIP INFORMATION
2. SEE PAGE 50A FOR STANDARD MAST
STANDING RIGGING LENGTHS AND OTHER
INFORMATION.
3. SEE PAGES 51 FOR FITTING DESCRIPTIONS
NOTE: NEVER TRY TO SAIL THE VESSEL WITHOUT
THE STRUTS IN PLACE AND PROPERLY FASTENED
(SEE PAGE 48B)
NOTE: IN-MAST FURLING OPTION USES A LARGER
MAST SECTION AND THUS DOES NOT UTILIZE THE
STRUTS. SEE FOLLOWING PAGE FOR MORE INFO.
UPPER STRUT
MOUNT
LOWER STRUT
MOUNT / D1
CHAINPLATE
BOW ROLLER /
FORESTAY ATTACHMENT
48A-1
4268048A-1
ENG
NONE
V1 CHAINPLATE
PIN IS INSERTED FROM STARBOARD SIDE
6
STRUT
S.S. COTTER PIN
8
7
5
4
3
S.S. COTTER PIN
2
FORWARD
1
6 RD1 3/16" (4.8mm) 1 X 19
7 V1 5/16" (8mm) 1 X 19
8 D1 5/16" (8mm) 1 X 19
5 V2 5/16" (8mm) 1 X 19
4 D2 7/32" (6mm) 1 X 19
1 HEADSTAY 9/32" (7mm) 1 X 19
3 RD2 3/16" (4.8mm) 1 X 19
2 D3 9/32" (7mm) 1 X 19
