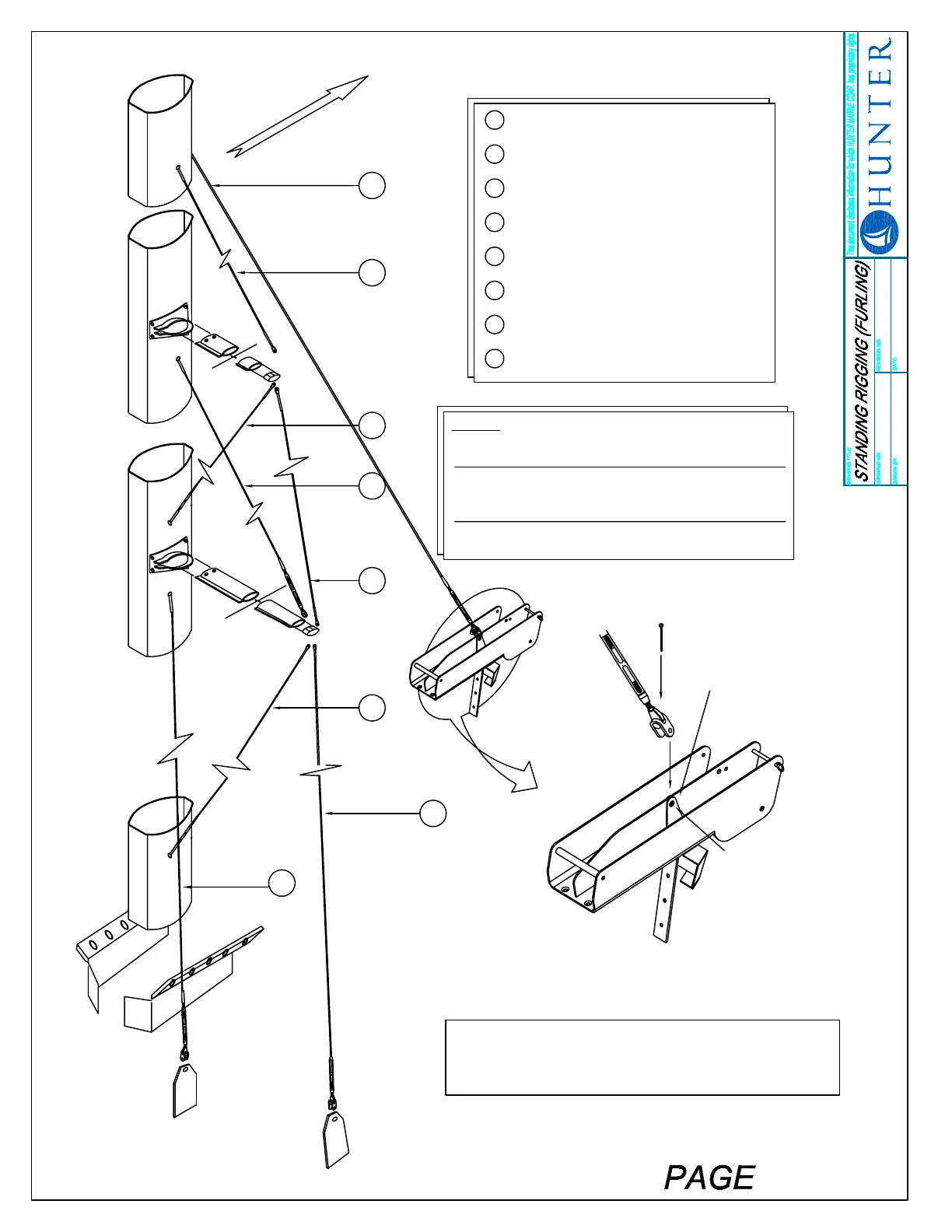

Hunter 44DS - Page 67

48A-2
4268048A-2
ENG
NONE
2. SEE PAGE 50B FOR STANDARD MAST
STANDING RIGGING LENGTHS AND OTHER
INFORMATION.
NOTE: IN-MAST FURLING OPTION USES A LARGER
MAST SECTION AND THUS DOES NOT UTILIZE THE
STRUTS.
3. SEE PAGES 51 FOR FITTING DESCRIPTIONS
8
6
5
FORWARD
1 HEADSTAY 9/32" (7mm) 1 X 19
NOTES:
1. SEE PAGES 49A & B FOR FURTHER SPREADER
TIP INFORMATION
4
3
2
1
7 V1 5/16" (8mm) 1 X 19
8 D1 5/16" (8mm) 1 X 19
4 D2 7/32" (6mm) 1 X 19
5 V2 5/16" (8mm) 1 X 19
6 RD1 3/16" (4.8mm) 1 X 19
2 D3 9/32" (7mm) 1 X 19
3 RD2 3/16" (4.8mm) 1 X 19
CHAINPLATE
CHAINPLATE
7
BOW ROLLER /
FORESTAY ATTACHMENT
S.S. COTTER PIN
PIN IS INSERTED FROM STBD SIDE
