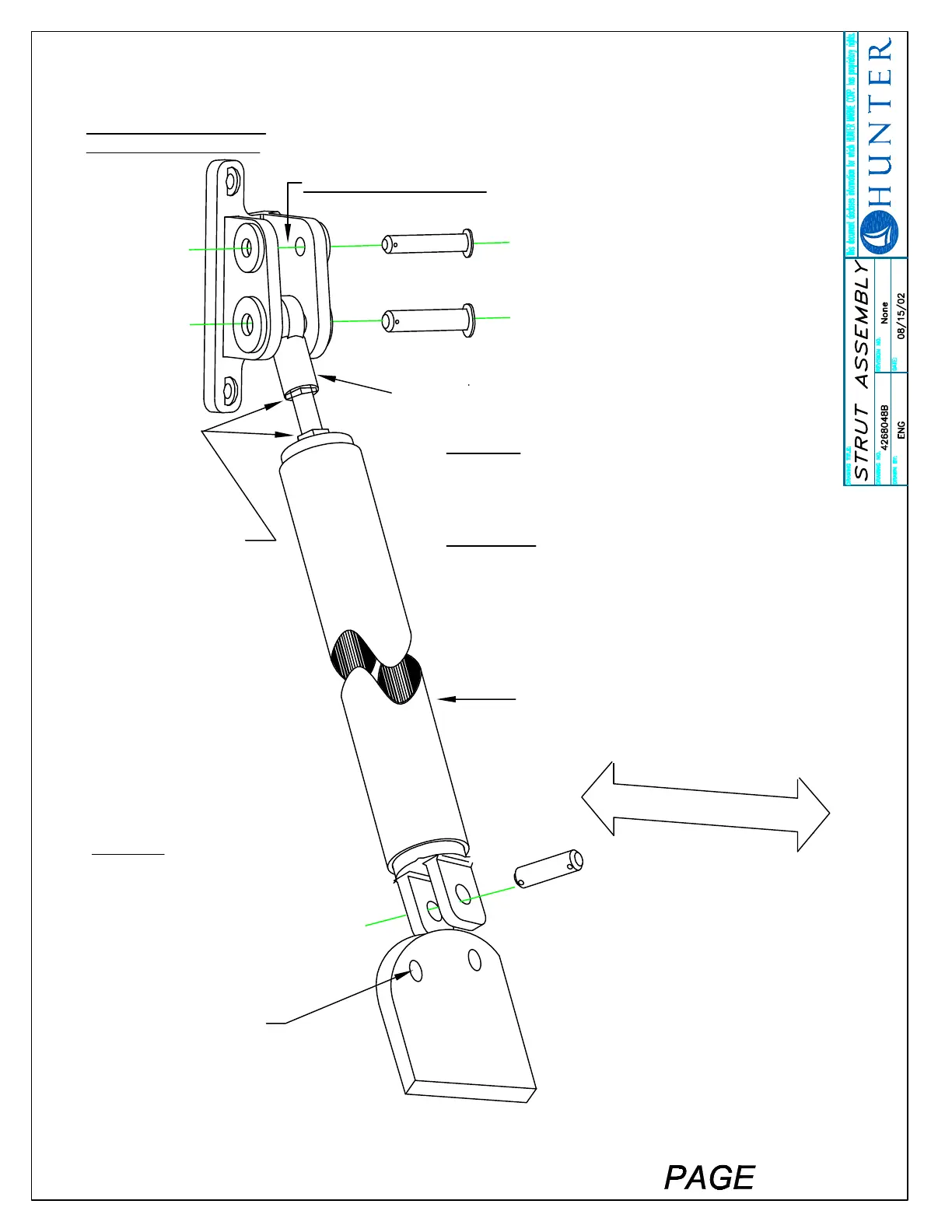

STEP ONE
PIN LOWER END OF STRUT TO FWD
CHAINPLATE HOLE AND ADD SPLIT
RINGS
STRUT
(RD-1 ATTACHES HERE)
JAM NUTS
(UPPER STRUT MOUNT
ON EA. SIDE OF MAST)
STEP TWO
ADJUST THREADS UNTIL BALL ROD JOINT IS ABLE
TO BE EASILY PINNED IN STRUT BRACKET
STEP THREE
PIN BALL ROD JOINT AND TIGHTEN JAM NUT
AGAINST END OF STRUT & BALL JOINT ROD
BALL ROD
JOINT
(D-1 ATTACHES HERE)
FWD
AFT
48B
