Hunter 81030 - Suspended Joist: Wiring and Ducting; Electrical Wiring Connections; Ductwork Connection

43043-01 01/24/2008
9
B17
B18

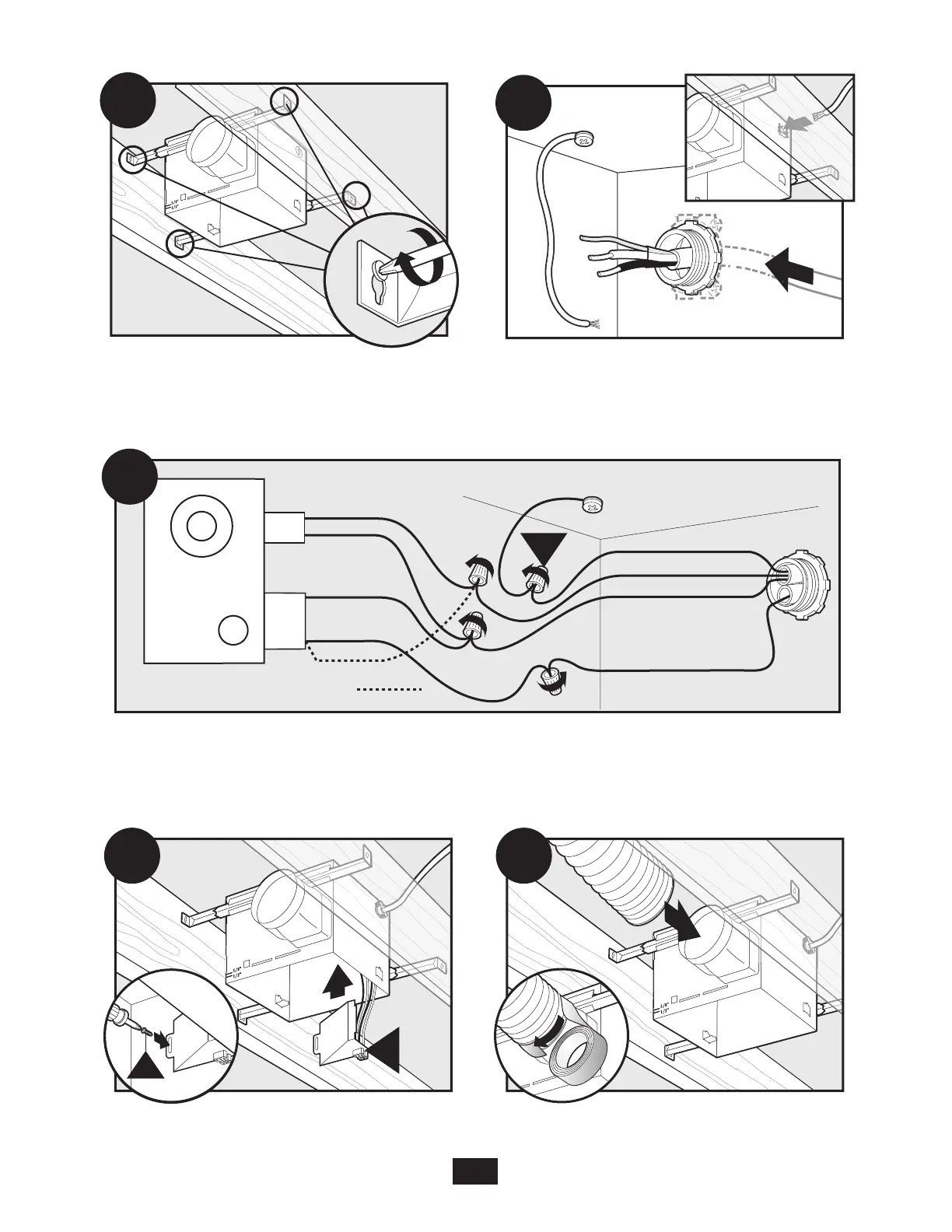

Connect wires as shown.
A
3 Pin
2 Pin
Fan Motor
Light
Light
Green
Black
Black
White
Black
Black
White
White
Bare Copper
Ground
B19
Main Switch 1 (AC In)
Switch 2 (AC In)
*Option Fan & Main Light Together
*Option
B21
Connect 4” duct and vent to the outside. Tape joints.
If ducting does not fit securely, an adapter may need
to be purchased.
Install the wiring cover plate. Make sure all wiring
connections are inside the box or under the
wiring cover plate.
F
G
B20
Tighten screws. Pull wires through the strain relief.
