Figure 9
Motor
Fan Blade
9a
Figure 11
Figure 10
Notch
Rear Grill
Front Grill
Hunter Logo
Figure 12
Grill
Ring
Screw
Figure 13
Screw

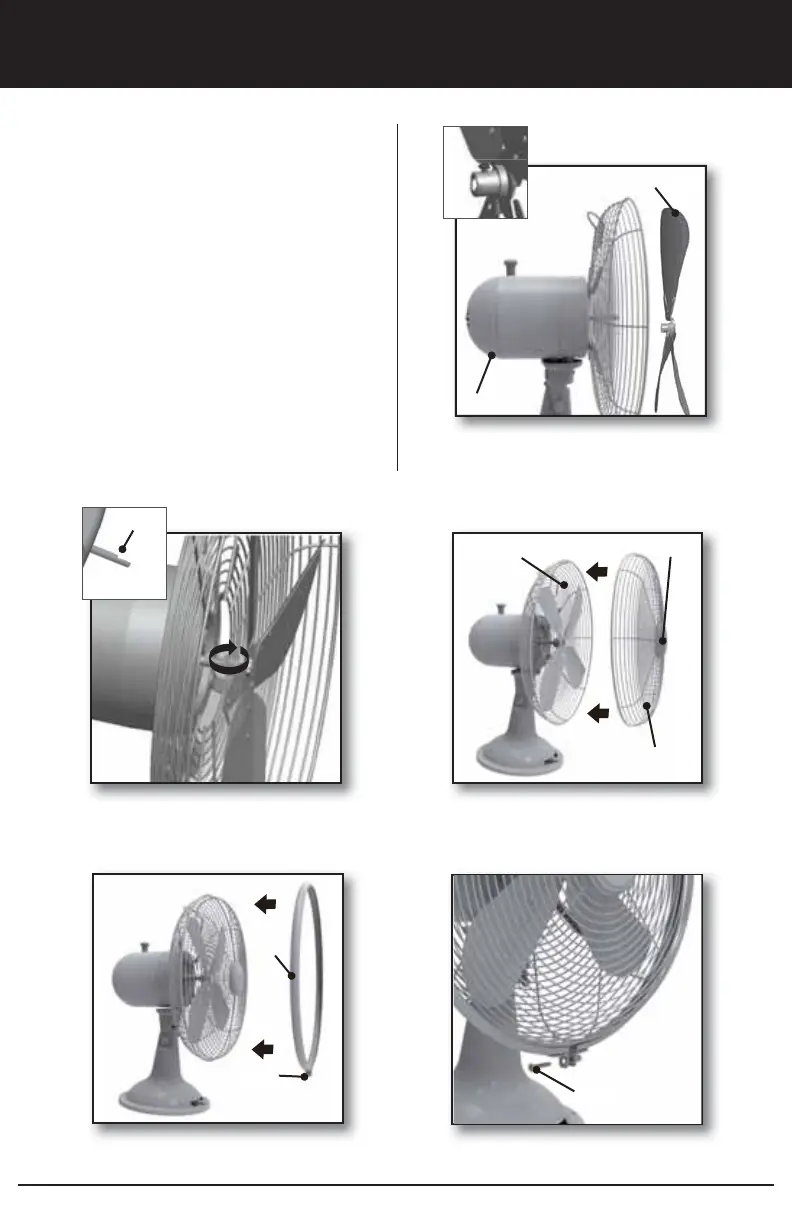

GRILL ASSEMBLY CONT.
7
6. Remove the grill ring from the front grill
by loosening the screw holding it
together.
7. Place the front grill against the rear grill
so that the Hunter logo faces right side
up and push together until the tabs on
the grills hold them together. Figure 11.
8. Expand the grill ring by loosening the
screw that secures it. Figure 12.
9. Slide the grill ring over both front and
rear grills turning the ring so that the
screw is on the bottom. Figure 12.
10. Tighten the screw to secure the grill
ring over both the front and rear grill.
Figure 13.
61901-01 R20210927
